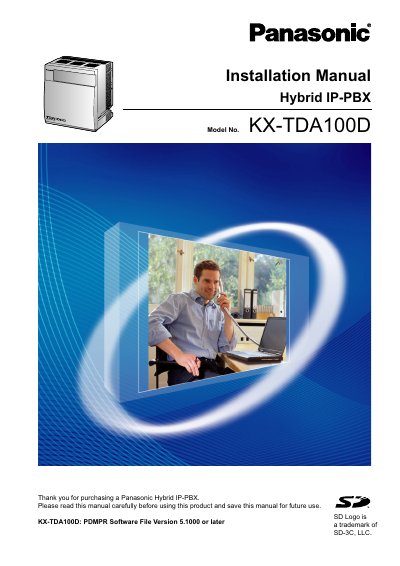

This manual introduces the basic components and installation instructions of the Panasonic KX-TDA100D Hybrid IP-PBX.
This manual provides step‑by‑step instructions for installing the Panasonic KX‑TDA100D Hybrid IP‑PBX. It lists all system components, including the basic shelf, processing cards, trunk cards, extension cards, and optional accessories, and explains how to connect them safely.
Safety and security requirements are detailed, with guidance on handling power, avoiding water exposure, and protecting user data stored on the SD memory card. Compatibility information for Panasonic proprietary telephones and other equipment is also included.
| Shelf model | KX‑TDA100D |
|---|---|
| Software file version | 5.1000 or later |
| SD Memory Card requirement | Version 5.1000 or later |
The PBX supports digital proprietary telephones (e.g., KX‑DT300 series), IP proprietary telephones (e.g., KX‑NT300 series), portable stations (e.g., KX‑TCA355, KX‑TCA256), DSS consoles (e.g., KX‑DT3980), and single‑line telephones (e.g., KX‑T7710).
