This document is about the standard operating instructions for an LCD television in the UK. It describes the features and characteristics of the product, such as receiving digital terrestrial broadcasts, sharp pictures with HDMI connection, linking and controlling connected equipment, and supporting audio description signal.

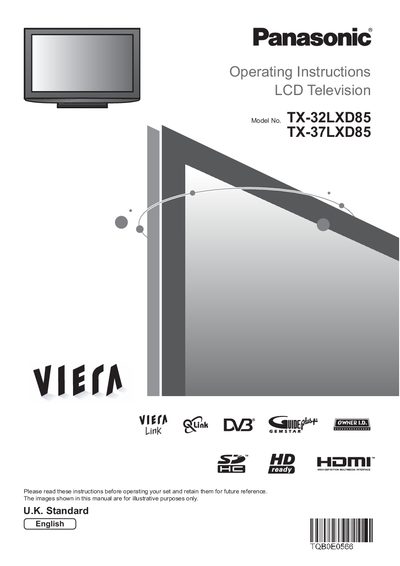

This manual provides detailed operating instructions for the Panasonic TX-32LXD85 and TX-37LXD85 LCD televisions, including safety precautions, quick‑start setup, control functions and connection diagrams. It also contains maintenance tips, accessory information and disposal guidelines.
The document includes a full specifications table covering power requirements, screen dimensions, audio output, HDMI ports and other technical data, helping users configure and maintain their TV for optimal performance.
| Power Source | AC 220‑240 V, 50 Hz |
|---|---|
| Average Power Consumption | 140 W (TX‑32LXD85) / 180 W (TX‑37LXD85) |
| Screen Size (Diagonal) | 80 cm (TX‑32LXD85) / 94 cm (TX‑37LXD85) |
| Visible Screen Dimensions | 697 mm × 392 mm (TX‑32LXD85) / 819 mm × 460 mm (TX‑37LXD85) |
| Number of Pixels | 1,049,088 (1,366 × 768) |
| Speakers | 2 pcs, 160 mm × 42 mm |
| Audio Output | 20 W (10 W + 10 W), 10 % THD |
| HDMI Connectors | HDMI1 / HDMI2 / HDMI3 (TYPE A) |
| Dimensions with Pedestal | 820 mm × 572 mm × 250 mm (TX‑32LXD85) / 940 mm × 645 mm × 294 mm (TX‑37LXD85) |
| Net Mass (with Pedestal) | 17 kg (TX‑32LXD85) / 21 kg (TX‑37LXD85) |
The TV operates on AC 220‑240 V, 50 Hz.
Average power consumption is 140 W for the TX‑32LXD85 and 180 W for the TX‑37LXD85.
TX‑32LXD85 measures 820 mm × 572 mm × 250 mm; TX‑37LXD85 measures 940 mm × 645 mm × 294 mm.
Connect the DVD recorder to the AV2 (Scart) terminal for Q‑Link support.
