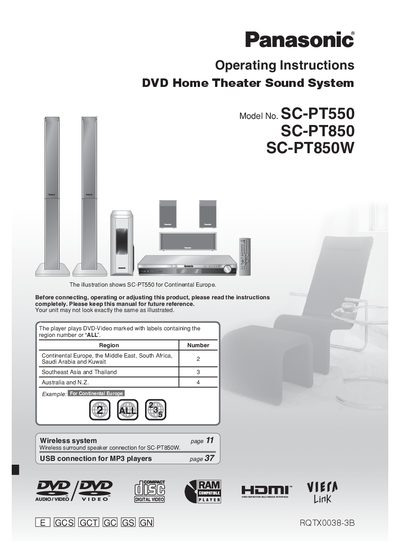

This document is the operating instructions for the RQTX0038-3B DVD home theater sound system, including information on connecting, operating, and adjusting the product. It describes the features and characteristics of different models, such as the wireless system, USB connection, and supported DVD-Video regions.
This manual provides step‑by‑step instructions for installing and using the Panasonic SC‑PT550, SC‑PT850 and SC‑PT850W DVD home‑theater sound systems. It includes safety warnings, wiring diagrams, speaker placement guidelines, remote‑control setup, and details on wireless and digital transmitter connections.
The document also describes disc playback functions, sound‑adjustment features such as equalizer and surround modes, karaoke operation, optional audio/video connections, troubleshooting tips, and technical specifications for the supplied speakers and accessories.
| Front speaker impedance | 3 Ω |
|---|---|
| Front speaker maximum power | 125 W |
| Front speaker frequency range | 76 Hz – 25 kHz |
| Front speaker dimensions (W × H × D) | 252 mm × 1123 mm × 235 mm |
| Surround speaker impedance | 3 Ω |
| Surround speaker maximum power | 125 W |
| Surround speaker SPL (1 m) | 80 dB |
| Surround speaker frequency range | 95 Hz – 25 kHz |
No. The wireless system must not be placed in a metal cabinet or bookshelf.
