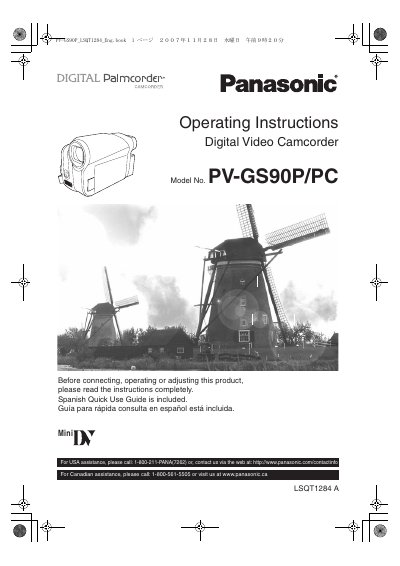

This manual covers safety precautions, proper handling, and installation instructions for the Panasonic PV‑GS90P/PC digital camcorder. It explains how to connect accessories, charge the lithium‑ion battery, and avoid hazards such as moisture, electric shock, and fire.
Detailed operating instructions are provided for all functions, including cassette handling, mode selection, recording and playback controls, menu navigation, and special features such as optical image stabilization, MagicPix, and wind‑noise reduction. The final sections list technical specifications, warranty information, and service contacts.
| Recording format | Mini DV (Consumer‑use digital video SD format) |
|---|---|
| Tape type | 6.35 mm digital video tape |
| Recording/playback time (SP) | 80 min |
| Recording/playback time (LP) | 120 min (with DVM80) |
| Image sensor | 1/6‑inch CCD |
| Effective pixels (moving picture) | 290 K (4:3), 380 K (16:9) |
| Lens aperture | F1.9 to F4.3 |
| Zoom ratio | 42:1 power zoom |
| Dimensions (W × H × D) | 67.0 mm × 84.5 mm × 119.3 mm |
| Weight | Approx. 390 g (without battery) |
| Power source (camcorder operation) | DC 9.3 V |
| Power consumption (recording) | 4.1 W |
| Battery type | Lithium‑ion/polymer rechargeable |
It records on Mini DV, a consumer‑use digital video SD format.
The camcorder provides up to 80 minutes of recording time in SP mode.
The battery supplies a DC voltage of 9.3 V for camcorder operation.
It features a 42:1 power zoom.
