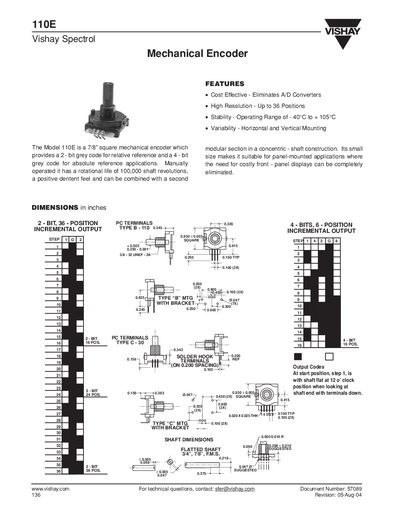

110E is a mechanical encoder from Vishay Spectrol that provides 2-bit gray code for relative reference and 4-bit gray code for absolute reference applications. Its features are cost-effective, eliminates A/D converters, high resolution up to 36 positions, stable operating range of -40°C to +105°C, and variability for horizontal and vertical mounting.
The 110E is a 7/8" square mechanical encoder with a concentric‑shaft construction, offering a 2‑bit grey code for relative reference and a 4‑bit grey code for absolute reference. It is designed for panel‑mounted applications and provides a cost‑effective alternative to A/D converters.
The datasheet lists electrical specifications such as 2‑bit and 4‑bit grey‑code outputs, contact ratings, and dielectric withstand voltage, as well as mechanical specifications including rotational torque, shaft dimensions, and a rotational life of 100,000 detented cycles. Ordering information and packaging details are also provided.
| Resolution | Up to 36 positions |
|---|---|
| Operating temperature range | -40°C to +105°C |
| Rotational life | 100,000 detented cycles |
| Rotational torque | 3.5 oz‑in (2.16‑3.60 N·m) |
| Maximum continuous speed | 50 RPM |
The encoder operates from -40 °C to +105 °C.
It is rated for 100,000 detented cycles.
The encoder can run continuously up to 50 RPM.
