27-inch NEXTVISION widescreen LCD HDTV with Dolby Digital sound, widescreen aspect ratio, wide viewing angle, and clear picture, supports HDMI, VGA and other input interfaces, and comes with a 10-watt high-fidelity sound system, bringing an immersive visual and audio experience

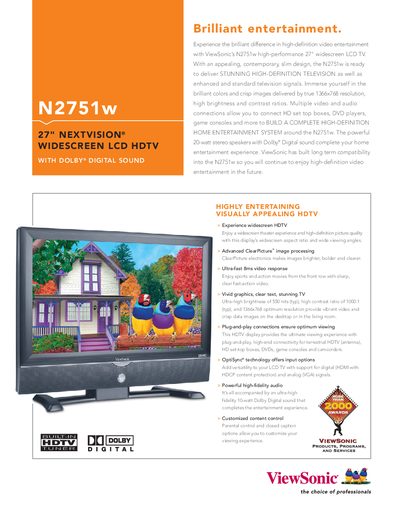

This manual covers the features and specifications of the ViewSonic N2751w 27" NEXTVISION widescreen LCD HDTV, including its 1366x768 resolution, 550‑nit brightness, 1000:1 contrast ratio, and Dolby® Digital sound. It explains how to connect video sources such as PCs, set‑top boxes, DVD players, and game consoles using analog VGA, HDMI, component, and composite inputs.
The guide also details the TV's controls, on‑screen menu options, power requirements, operating temperature and humidity ranges, dimensions, weight, and warranty information, helping users set up and enjoy high‑definition entertainment safely and efficiently.
| LCD Type | 27" color TFT active matrix, wide 1366x768 LCD |
|---|---|
| Display Area | 23.5" horizontal x 13.2" vertical; 27.0" diagonal |
| Optimum Resolution | 1366x768 |
| Contrast Ratio | 1000:1 (typ) |
| Viewing Angles | 176° horizontal, 176° vertical |
| Response Time | 8ms gray-to-gray (avg) |
| Light Source Life | 50,000 hrs (typ) |
| Aspect Ratio | 16:9 |
| Glass Surface | Anti‑glare, anti‑reflective coat |
| PC Input | RGB analog (75 Ω, 0.7 Vp‑p) |
| TV Input Options | Composite, component YPbPr/YCbCr, S‑video, HDMI |
| Audio Input | 3.5 mm mini stereo and RCA (left/right) |
| Digital HDMI | HDMI (DVI compatible) with HDCP |
| Tuner | ATSC/NTSC |
| Audio Output | 2 × 10‑watt speakers with Dolby® Digital sound |
| PC Compatibility | VGA up to 1360×768 non‑interlaced |
| Mac Compatibility | Power Mac G3/G4/G5 up to 1360×763 |
| Supported Input Signals | 480i, 480p, 720p, 1080i |
| Power Voltage | AC 90‑240 V (universal), 47‑63 Hz |
| Power Consumption | 190 W (typ) |
| Dimensions (with stand) | 26.8" × 21.2" × 9.5" |
| Net Weight (with stand) | 35.2 lb (16.0 kg) |
| Operating Temperature | 32‑104 °F (0‑40 °C) |
| Operating Humidity | 10‑90 % (non‑condensing) |
Connect the PC to the TV’s VGA port using a VGA cable; the TV accepts RGB analog input (75 Ω, 0.7 Vp‑p).
The TV has two 10‑watt speakers that deliver Dolby® Digital sound.
The TV typically consumes 190 W of power.
The TV measures 26.8 in wide, 21.2 in high, and 9.5 in deep with the stand attached.
