The ViewSonic VE170 17.0-inch TFT LCD display is the clear value. It delivers brilliant, color-rich images along with sharp, crisp text. It is available in either black or beige, and at an amazingly affordable price. Plus, it meets global envi- ronmental and safety standards.

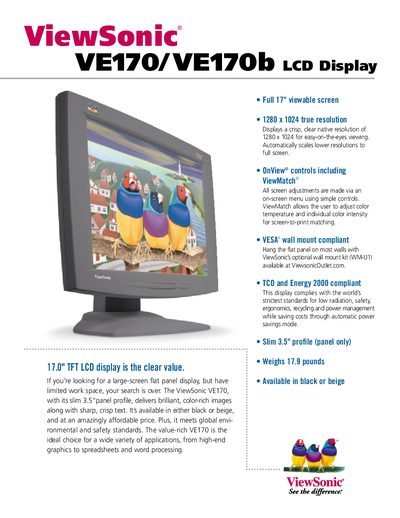

The manual describes the 17‑inch ViewSonic VE170/VE170b LCD monitor, highlighting its 1280 × 1024 native resolution, slim 3.5" panel profile, and on‑screen adjustment tools such as ViewMatch for color matching. It also notes compliance with TCO, ENERGY STAR, and other environmental standards.
Installation details cover VESA‑compatible wall‑mounting, power requirements (90‑264 V AC, 50 W max), connector types (15‑pin mini‑D‑sub RGB), and warranty information, including a three‑year limited warranty and 24/7 technical support.
| Display Area | 13.3" horizontal x 10.6" vertical, 17.0" diagonal |
|---|---|
| Contrast Ratio | 300:1 (typ) |
| Viewing Angle | 120° horizontal, 100° vertical (typ) |
| Brightness | 220 cd/m² (typ) |
| Light Source Life | 50,000 hours (typ) |
| Input Signal | Video RGB Analog (75 Ω, 0.7 V) |
| Power Voltage | AC 90‑264 V (universal) |
| Power Consumption | 50 W max |
| Dimensions (W×H×D) | 448 mm × 474 mm × 229 mm (17.6" × 18.7" × 9.0") |
| Weight | 8.1 kg (17.82 lb) |
ViewSonic offers a three‑year limited warranty covering parts, labor, and the backlight.
