The N4290p 42-inch Full 1080p LCD HDTV has three HDMI 1.3 inputs

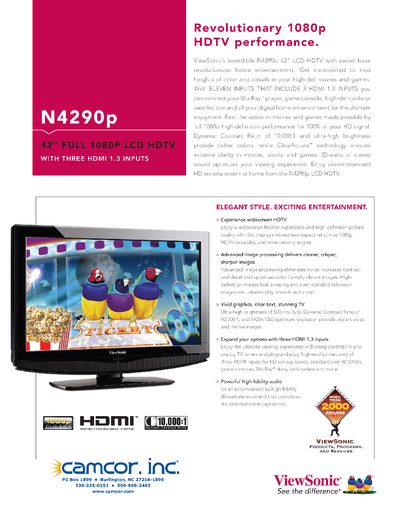

This manual describes the ViewSonic N4290p 42" full‑HD LCD HDTV, its features, and how to install and use the television. It covers the display specifications, input options, audio, and basic controls.
The guide includes detailed specifications, connection diagrams, operating instructions, environmental limits, mounting dimensions, and warranty details to help users set up and maintain the TV safely.
| Screen Size | 42" diagonal |
|---|---|
| Resolution | 1920x1080 |
| Contrast Ratio | 2000:1 static (typ), 10,000:1 dynamic |
| Brightness | 500 cd/m² (typ) |
| Response Time | 6.5 ms (typ) |
| HDMI Inputs | 3 x HDMI 1.3 (HDCP & audio) |
| Power Consumption | 250 W (typ) |
| Operating Temperature | 32‑104 °F (0‑40 °C) |
| Dimensions (with stand) | 39.8" x 27.1" x 10.4" |
| Weight (with stand) | 46.3 lb (21.0 kg) |
The N4290p provides three HDMI 1.3 inputs with HDCP and audio support.
Typical power consumption is 250 W.
The TV operates between 32 °F and 104 °F (0 °C to 40 °C).
ViewSonic offers a one‑year limited warranty on parts, labor, and backlight.
