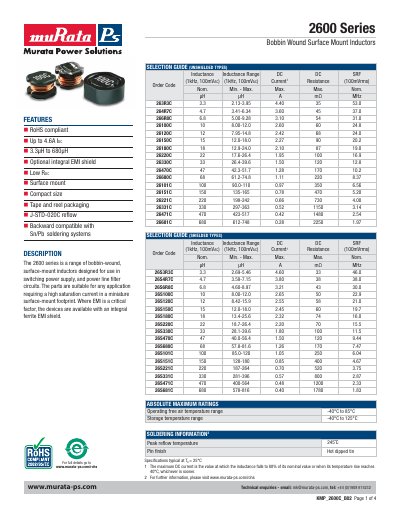

The 2600 series is a range of bobbin-wound, surface-mount inductors designed for use in switching power supply, and power line filter circuits.
The 2600C series is a family of bobbin‑wound, surface‑mount inductors intended for switching power supplies and power‑line filter circuits. They offer high saturation current in a compact SMD footprint and are available with or without an integral EMI shield.
Key features include RoHS compliance, low DC resistance, a wide inductance range (3.3 µH‑680 µH), and options for tape‑and‑reel packaging. The document lists detailed electrical parameters, mechanical dimensions, and maximum ratings such as a 4.6 A DC current and a 245 °C peak reflow temperature.
| Maximum DC current | 4.6 A |
|---|---|
| Inductance range | 3.3 µH to 680 µH |
| DC resistance | Low |
| Operating temperature range | -40 °C to 85 °C |
| Peak reflow temperature | 245 °C |
| Package weight (unshielded) | 1.54 g |
| Package weight (shielded) | 2.34 g |
| RoHS compliance | Yes |
The inductors can handle up to 4.6 A DC current.
Yes, the series is listed as RoHS compliant.
Inductance values range from 3.3 µH up to 680 µH.
The recommended peak reflow temperature is 245 °C.
