Vishay Techno CRHV high voltage chip resistors, product features include high voltage, good stability, flow solderable, customizable size, automatic placement capability, top and wraparound terminals, with nickel barrier internationally standardized size.

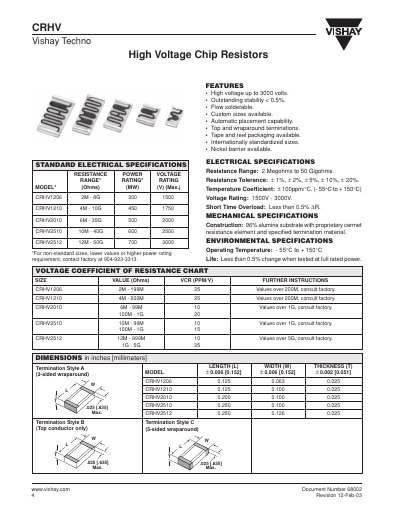

The CRHV series from Vishay provides high‑voltage chip resistors designed for up to 3000 V operation. Features include outstanding stability, flow solderability, automatic placement capability, and multiple termination styles.
Technical specifications cover resistance ranges from 2 MΩ to 50 GΩ, power ratings up to 700 mW, temperature coefficients of ±100 ppm/°C, and an operating temperature range of –55 °C to +150 °C. Ordering information includes size codes, tolerance options, and termination materials.
| Voltage Rating | 1500 V‑3000 V |
|---|---|
| Resistance Range | 2 MΩ‑50 GΩ |
| Temperature Coefficient | ±100 ppm/°C |
| Operating Temperature | -55 °C to +150 °C |
The CRHV resistors are rated for up to 3000 V.
Resistance values range from 2 MΩ to 50 GΩ.
Termination styles A (3‑sided wraparound), B (top conductor only), and C (5‑sided wraparound) are available.
The devices operate from –55 °C to +150 °C.
