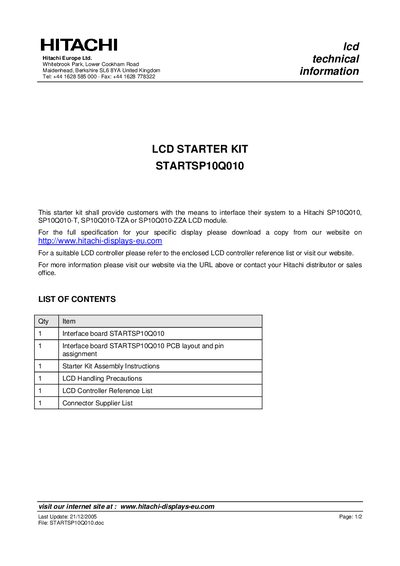

Hitachi STARTSP10Q010 LCD Starter Kit Datasheet

About this manual

The STARTSP10Q010 starter kit enables customers to connect their system to Hitachi SP10Q010 series LCD modules. It includes an interface board, PCB layout, and a reference list for compatible LCD controllers.

The kit contains one interface board, assembly instructions, LCD handling precautions, a controller reference list, and a connector supplier list. Important notes warn against powering the inverter board without a CFL connected and advise using the correct power‑up sequence.

What's inside

• Interface board
• PCB layout and pin assignment
• Assembly Instructions
• LCD Handling Precautions
• LCD Controller Reference List
• Connector Supplier List

Specifications

Frequently asked questions

How many interface boards are included in the kit?

The kit includes one interface board, model STARTSP10Q010.

Where can I find the full specification for the LCD display?

Download the full specification from Hitachi's website at www.hitachi-displays-eu.com.

What precaution must be taken before powering the inverter board?

Do not apply power to the inverter board without a CFL connected, otherwise the inverter fuse may fail.
