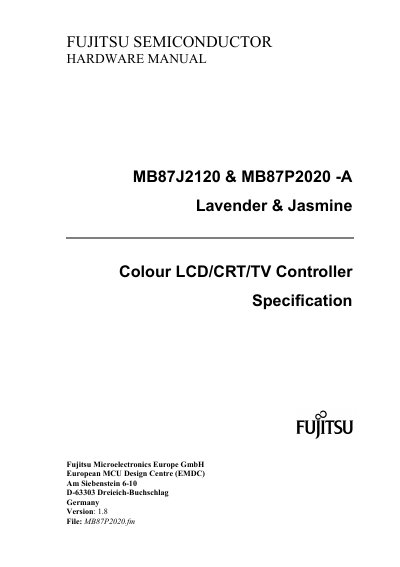

This document is the hardware manual for the MB87J2120 and MB87P2020-A Lavender & Jasmine Color LCD/CRT/TV Controller produced by FUJITSU SEMICONDUCTOR. The document provides specifications and functional descriptions of the products.
This hardware manual covers the Fujitsu MB87J2120 and MB87P2020-A colour display controllers, known as Lavender and Jasmine. It details the architecture, functional blocks, and programming interfaces needed to integrate the chips into LCD, CRT, or TV systems.
The document includes an overview of features, clock unit specifications, user logic bus controller, SDRAM controller, pixel processor, antialiasing filter, video interface controller, and graphics processing unit. It also provides pinning diagrams, electrical specifications, and appendices such as abbreviations and command lists.
| Supported colour formats | 1bpp, 4bpp, RGB111 |
|---|---|
| Maximum ratings section | See Section 2.1 "Maximum Ratings" |
Pinning information for MB87P2020-A is provided in Part C – Pinning and Electrical Specification, under the section "Pinning for MB87P2020-A".
