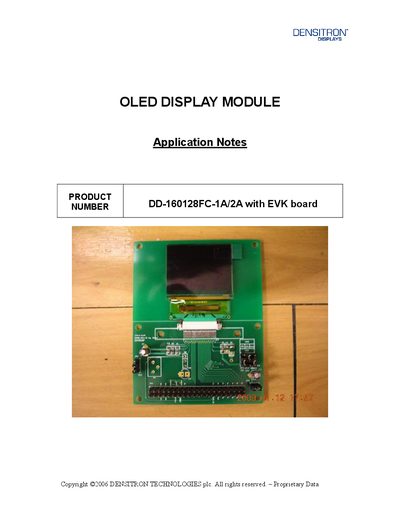

Densitron DD-160128FC-1A/2A OLED Display Module Application Note
The document describes the EVK board schematic, timing characteristics for both 80‑series and 6800‑series MPU parallel interfaces, and the wiring connections required between the OLED display and the evaluation board. It also includes recommended initial code and sub‑functions for the 80‑series interface, enabling developers to quickly integrate the display.
Key sections cover the EVK schematic, detailed timing tables (address hold, setup, cycle times, pulse widths, and data timing), pin definitions, and example C code for initializing the display, setting memory pointers, and driving the RGB interface.
Densitron DD-160128FC-1A specifications
| Address hold time (tAH8) | 5 ns |
|---|---|
| Address setup time (tAS8) | 5 ns |
| System cycle (write) (tCYC8) | 100 ns |
| Write L pulse width | 4 ns |
| Data setup timing (tDS8) | 30 ns |
| System cycle (read) (tCYC8) | 200 ns |
Source: Densitron DD-160128FC-1A/2A OLED Display Module Application Note
All Densitron DD-160128FC-1A documents by type
How to use the product for one specific task, with worked examples.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended initial code for the 80‑series interface?
The document provides sample initialization code that writes a series of command and data bytes (e.g., write_d(0x00); write_c(0x08); …) to set up the display.
From: Densitron DD-160128FC-1A/2A OLED Display Module Application Note
Which pins form the 9‑bit bi‑directional data bus?
Pins D17‑D9 constitute the 9‑bit bi‑directional data bus that connects to the MCU’s data bus.
From: Densitron DD-160128FC-1A/2A OLED Display Module Application Note
What is the operating temperature range of the DD-160128FC-1A module?
The module can operate from –20 °C to +70 °C.
From: Densitron DD-160128FC-1A OLED Display Module Specification
What supply voltage should be applied to the display?
The typical supply voltage is 3.3 V, with a minimum of 2.6 V and a maximum of 2.8 V.
From: Densitron DD-160128FC-1A OLED Display Module Specification
