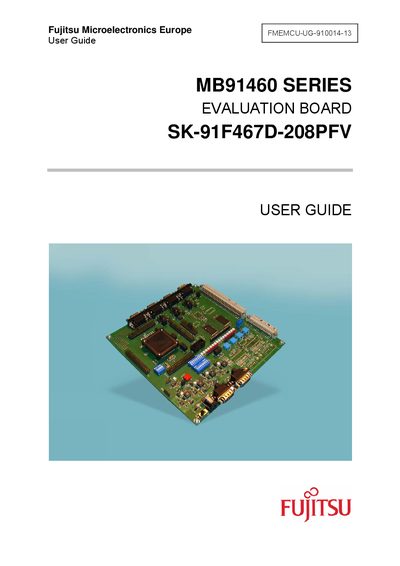

This is the user guide of Fujitsu Microelectronics Europe's MB91460 SERIES EVALUATION BOARD SK-91F467D-208PFV USER GUIDE, version is V1.1
The SK-91F467D-208PFV is a multifunctional development board for the Fujitsu 32‑bit flash microcontroller MB91460 series. It provides a complete hardware platform for software development, testing, and early system integration before a final target board is available.
The guide describes the board’s hardware features, power requirements, connector layout, jumper settings, and the Softune Workbench software tools needed to program the internal flash and use the SWB Monitor Debugger. It also includes troubleshooting tips and reference schematics.
| Supported microcontroller | Fujitsu MB91460 series (32‑bit flash) |
|---|---|
| External power supply | 9‑12 V (2000 mA) unregulated DC |
| On‑board regulators | 5 V, 3.3 V, 2.5 V and 1.8 V with status LEDs |
| SRAM | 32 Mbit (4 MByte) |
| Flash memory | 128 Mbit (16 MByte) |
| User LEDs | 16 |
| User buttons | 4 |
| UART interfaces | Three selectable RS‑232 or LIN UART interfaces |
| CAN interfaces | Three high‑speed CAN interfaces |
| External bus connectors | 96‑pin and 48‑pin DIN 41612 (VG) connectors |
It is designed for the Fujitsu 32‑bit flash microcontroller MB91460 series.
The board needs an unregulated DC supply of 9 V to 12 V capable of delivering up to 2000 mA.
