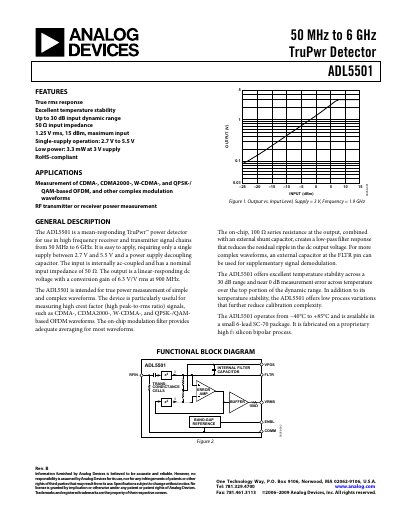

The ADL5501 is a mean-responding TruPwr™ power detector for use in high frequency receiver and transmitter signal chains from 50 MHz to 6 GHz. It is easy to apply, requiring only a single supply between 2.7 V and 5.5 V and a 50 Ω input impedance.
The ADL5501 is a mean‑responding TruPwr™ power detector for high‑frequency receiver and transmitter signal chains from 50 MHz to 6 GHz. It requires a single supply of 2.7 V to 5.5 V, has a nominal 50 Ω input impedance, and provides a linear dc output voltage with a conversion gain of 6.3 V/V rms at 900 MHz.
Key features include excellent temperature stability, up to 30 dB input dynamic range, low power consumption (3.3 mW at 3 V), and RoHS compliance. The device is suited for true‑power measurement of simple and complex waveforms, especially high crest‑factor signals such as CDMA, W‑CDMA, and QAM‑based OFDM.
| Frequency range | 50 MHz – 6 GHz |
|---|---|
| Input impedance | 50 Ω |
| Supply voltage | 2.7 V – 5.5 V |
| Power consumption | 3.3 mW at 3 V supply |
| Dynamic range | up to 30 dB |
| Conversion gain at 900 MHz | 6.3 V/V rms |
| Operating temperature range | -40 °C to +85 °C |
It operates from a single supply of 2.7 V to 5.5 V.
The detector works from 50 MHz up to 6 GHz.
The nominal input impedance is 50 Ω.
The conversion gain is 6.3 V/V rms at 900 MHz.
