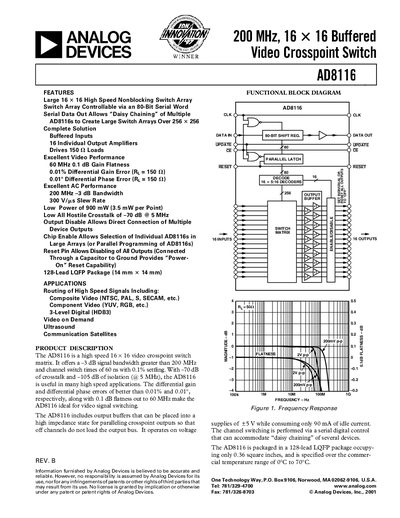

The AD8116 is a 16x16 high speed switch array from Analog Devices. It can be controlled by an 80-bit serial word and support cascading multiple AD8116s to expand to 256x256 arrays. The AD8116 has 150 Ohm output drive capability, 60 MHz 0.1 dB gain flatness, and 0.01% differential gain error.
The AD8116 video crosspoint switch provides a 16 × 16 non‑blocking matrix for routing high‑speed video signals. It features an 80‑bit serial control word, daisy‑chaining capability, and buffered outputs that can be disabled for parallel operation. The device operates from a +5 V supply and consumes less than 1 W.
The datasheet includes detailed electrical specifications, timing characteristics, absolute maximum ratings, pin descriptions, and typical performance graphs. It also lists ordering information and recommended ESD handling procedures for reliable integration into video systems.
| Crosstalk | -70 dB @ 5 MHz |
|---|---|
| Supply Voltage Range | +4.5 V to +5.5 V |
The device operates from a supply voltage range of +4.5 V to +5.5 V.
Yes, the serial data out allows daisy‑chaining of multiple AD8116 devices to create large switch arrays.
