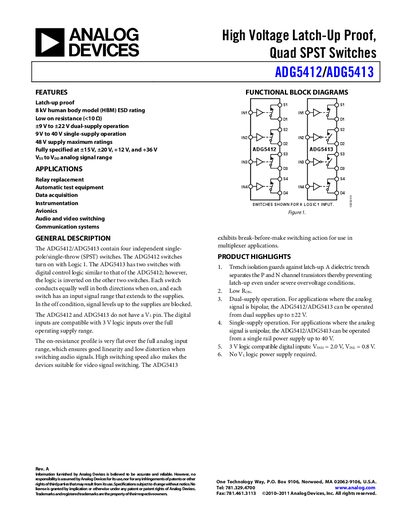

The ADG5412/ADG5413 are high voltage latch-up proof, quad SPST switches.
The ADG5412 and ADG5413 contain four independent SPST switches. They are latch‑up‑proof, support dual‑supply (+9 V to +22 V) or single‑supply (9 V to 40 V) operation, and feature low on‑resistance and fast switching suitable for audio and video signal routing. Digital inputs are 3 V‑logic compatible and no separate logic‑power pin is required.
Typical applications include relay replacement, automatic test equipment, data acquisition, instrumentation, avionics, audio/video switching and communication systems. Key specifications are an on‑resistance of about 0.98 Ω (typ), input‑high voltage 2.0 V min, input‑low voltage 0.8 V max, ESD rating of 8 kV HBM, and a 3‑dB bandwidth up to 167 MHz.
| Input High Voltage (Vint) | 2.0 V min |
|---|---|
| Input Low Voltage (Vint) | 0.8 V max |
| Digital Input Capacitance (Cin) | 2.5 pF typ |
| On‑Resistance (Ron) | 0.98 Ω typ |
| ESD Rating | 8 kV HBM |
The devices have an 8 kV human‑body‑model (HBM) electrostatic‑discharge rating.
It can operate from dual supplies of +9 V to +22 V or from a single supply of 9 V to 40 V.
The input‑high voltage is 2.0 V minimum and the input‑low voltage is 0.8 V maximum.
