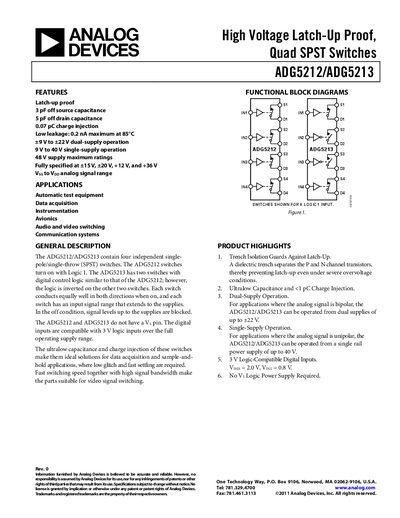

The ADG5212/ADG5213 are high voltage latch-up proof, quad single-pole/single-throw (SPST) switches. They feature latch-up protection, low charge injection, and low leakage current. They are suitable for applications in automatic test equipment, data acquisition, instrumentation, avionics, audio and video switching, and communication systems.
The ADG5212 and ADG5213 are quad single‑pole/single‑throw (SPST) analog switches with latch‑up protection, low off‑capacitance, and low charge injection. They support both dual‑supply (+9 V to +22 V) and single‑supply (up to 40 V) operation, making them suitable for data‑acquisition, instrumentation, and video‑signal switching applications.
The datasheet provides detailed electrical specifications, absolute maximum ratings, ESD precautions, and ordering information for the devices in TSSOP and LFCSP packages. Key parameters such as on‑resistance, leakage currents, dynamic switching speed, and bandwidth are listed for multiple supply voltages.
| On‑Resistance (Ron) typical | 160 Ω |
|---|---|
| Source Off Leakage (Is(off)) typical | 0.01 nA |
| Digital Input High Voltage (Vih) | 2.0 V min |
| Supply Voltage range (dual‑supply) | +9 V to +22 V |
| Maximum Supply Rating | 48 V |
| Charge Injection | 0.07 pC typical |
| 3‑dB Bandwidth | 435 MHz typical |
The typical on‑resistance is 160 Ω at a 10 V supply.
The absolute maximum supply voltage is 48 V.
A logic‑high requires at least 2.0 V.
Charge injection is typically 0.07 pC.
