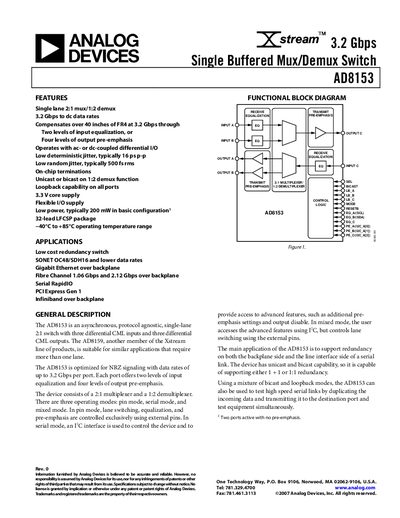

The AD8153 is a 3.2Gbps single buffered switch with low jitter, low power, flexible power supply and supports a variety of applications, including low cost redundancy switch, SONET OC48/SDH16 and lower data rate Gigabit Ethernet, Fibre Channel 1.06Gbps and 2.12Gbps and backplane, Serial RapidIO, PCI Express Gen 1 and Infiniband etc.
The AD8153 is an asynchronous, protocol‑agnostic single‑lane 2:1 multiplexer and 1:2 demultiplexer designed for high‑speed serial applications. It offers two levels of input equalization, four levels of output pre‑emphasis, and supports both unicast and bicast modes for redundancy and testing.
The device operates from a 3.3 V core supply with a flexible I/O supply, consumes about 200 mW in a basic configuration, and works over a temperature range of –40 °C to +85 °C. Detailed specifications, pin functions, timing diagrams, and typical performance curves are provided.
| Data Rate (NRZ) | 3.2 Gbps |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
The AD8153 supports data rates up to 3.2 Gbps per channel.
It uses a 3.3 V core supply.
Typical power consumption is about 200 mW.
It operates from –40 °C to +85 °C.
