AD8113 is a 60MHz 16x16 switch matrix produced by Analog Devices. The switch matrix has the characteristics of high speed, non-blocking, serial or parallel programming, output disable, output buffer, low supply current, etc., and can be widely used in audio/video fields.

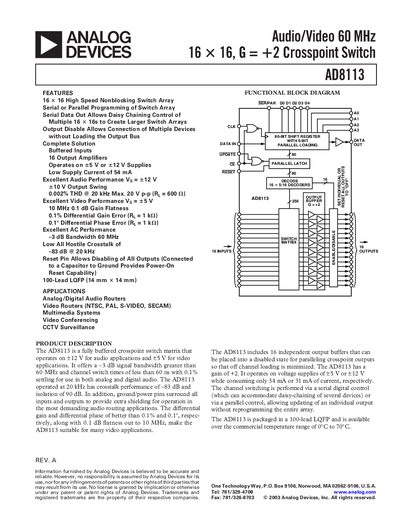

The AD8113 is a fully buffered 16 × 16 crosspoint switch matrix designed for analog and digital audio/video routing. It provides non‑blocking switching, serial or parallel programming, and output‑disable capability, with a typical supply current of 54 mA at +12 V.
Typical applications include audio routers, video routers (NTSC, PAL, S‑VIDEO, SECAM), multimedia systems, video conferencing, and CCTV surveillance. The device is supplied in a 100‑lead LQFP package and operates over a commercial temperature range of 0 °C to 70 °C.
| -3 dB Bandwidth | 60 MHz |
|---|---|
| Output Voltage Swing (+5 V, no load) | +3.2 V to +3.5 V |
| Crosstalk (20 kHz) | -83 dB |
| Gain Flatness | 0.1 dB |
| Operating Temperature Range | 0 °C to 70 °C |
| Package | 100‑lead LQFP |
The AD8113 provides a –3 dB bandwidth of 60 MHz.
The device operates from either +5 V (for video) or +12 V (for audio) supplies.
Crosstalk is –83 dB at 20 kHz.
