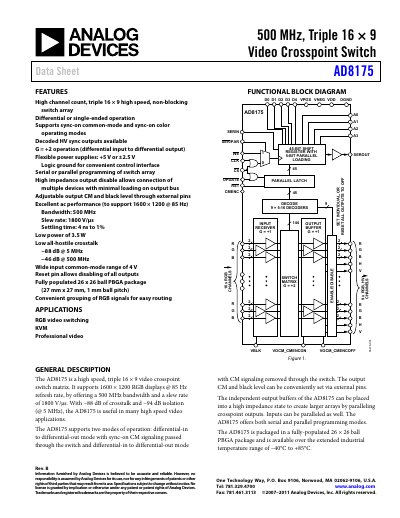

AD8175 is a high channel count, triple 16 × 9 high-speed crosspoint switch array that supports differential or single-ended operation and is suitable for sync-on common-mode and sync-on color operating modes.
The AD8175 is a high‑speed, triple 16×9 video crosspoint switch matrix designed for RGB video switching, KVM and professional video applications. It supports both differential and single‑ended operation, offers flexible power‑supply options (+5 V or ±2.5 V), and includes serial and parallel programming modes.
Key specifications include a 500 MHz bandwidth, 1800 V/µs slew rate, low crosstalk (‑88 dB at 5 MHz), and a fully‑populated 26 × 26 ball PBGA package. The device operates over an extended industrial temperature range (‑40 °C to +85 °C) and provides configurable output CM and black‑level settings via external pins.
| Bandwidth | 500 MHz |
|---|---|
| Gain Flatness | 0.1 dB |
| Settling Time | 4 ns |
| Slew Rate (Differential Output) | 1800 V/µs |
| Crosstalk @ 5 MHz | -88 dB |
| Supply Current (VPOS enabled, no load) | 600 mA |
It supports both serial and parallel programming modes.
It is supplied in a fully‑populated 26 × 26 ball PBGA package.
VPOS‑VNEG 4.5 V to 5.5 V and VDD‑DGND 3.3 V to 5.5 V.
