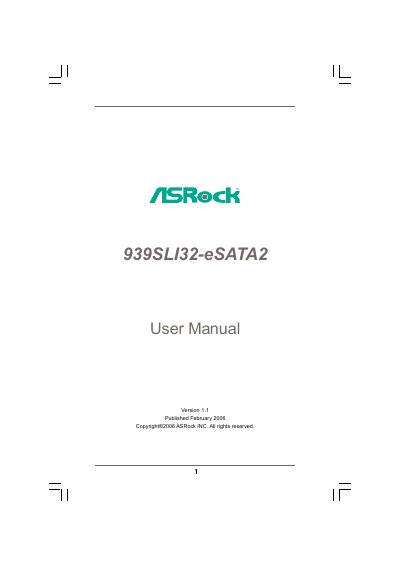

This document is the user manual for ASRock 939SLI32-eSATA2, version 1.1, published in February 2006. The manual provides instructions and information about the ASRock 939SLI32-eSATA2 motherboard.
This manual covers the ASRock 939SLI32-eSATA2 ATX motherboard, detailing package contents, hardware layout, and supported technologies such as AMD Cool ’n’ Quiet, Dual‑Channel DDR memory, and eSATAII interfaces.
It includes step‑by‑step installation instructions, BIOS configuration guidance, and information on the support CD utilities, helping users set up and maintain the board safely. This manual is written in Chinese.
| Form Factor | ATX (12.0‑in x 9.6‑in, 30.5 cm x 24.4 cm) |
|---|---|
| CPU Socket | 939‑Pin socket supporting AMD Athlon™ 64 / 64FX / 64X2 |
| Chipset | Northbridge ULi M1695, Southbridge ULi M1697 |
| Memory Slots | 4 DDR DIMM slots, DDR400/333/266, max 4 GB |
| LAN | Gigabit Ethernet 10/100/1000 Mb/s (Realtek RTL8111B) |
| Audio Codec | Realtek ALC660 5.1‑channel HD audio |
| eSATAII Ports | 2 eSATAII 3.0 Gb/s ports (shared with SATAII) |
| SATAII Connectors | 4 SATAII 3.0 Gb/s connectors with RAID support |
The motherboard provides two eSATAII ports.
It uses a ULi M1695 northbridge and a ULi M1697 southbridge.
Yes, the motherboard supports AMD’s Cool ’n’ Quiet technology.
Up to 4 GB of DDR memory can be installed.
