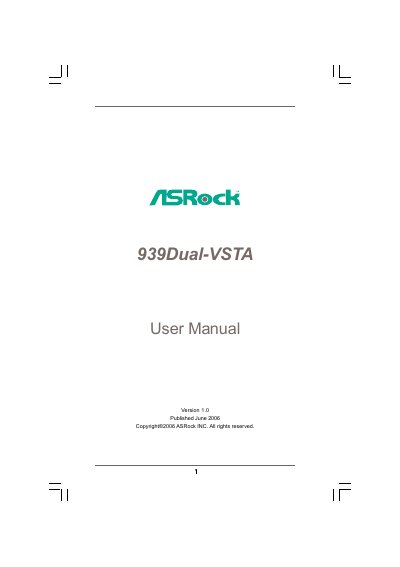

This document is the user manual for the ASRock INC. 11111 939Dual-VSTA motherboard. The manual describes the features and characteristics of the motherboard.
This manual introduces the ASRock 939Dual-VSTA ATX motherboard, its package contents, and detailed specifications. It guides users through hardware installation, including CPU, memory, expansion slots, and SATA connections, and explains BIOS configuration and software support.
Additional sections cover minimum hardware requirements for Windows Vista, security password setup, and an appendix on enabling AMD’s Cool ‘n’ Quiet technology. The support CD contents and contact information are also provided.
| Form Factor | ATX (12.0‑in x 9.6‑in) |
|---|---|
| CPU Socket | Socket 939 for AMD Athlon 64FX/64X2/64 |
| Chipset | Northbridge ULi M1695, Southbridge ULi M1567 |
| Memory Slots | 4 x DDR DIMM, max 4 GB |
| Audio Codec | C‑Media CM6501 7.1‑channel |
| LAN | Realtek RTL8201CL 10/100 Ethernet |
| BIOS | 4 MB AMI BIOS |
The motherboard supports Microsoft Windows 2000, XP, XP 64‑bit, and Vista.
The motherboard can accommodate up to 4 GB of DDR memory.
