AD8104/AD8105 is a 32x16 high speed non-blocking switch array from Analog Devices, which supports differential or single-ended operation, supports single +5V power supply or dual ±2.5V power supply, and can be programmed in serial or parallel. It has excellent video performance and ac performance, and its power consumption is only 1.7W.
The AD8104 and AD8105 are high‑speed 32 × 16 analog crosspoint switch matrices offering up to 600 MHz bandwidth and 1800 V/µs slew rate. They support differential or single‑ended operation, with a differential gain of +1 (AD8104) or +2 (AD8105), and can be powered from a single +5 V supply or dual +2.5 V supplies.

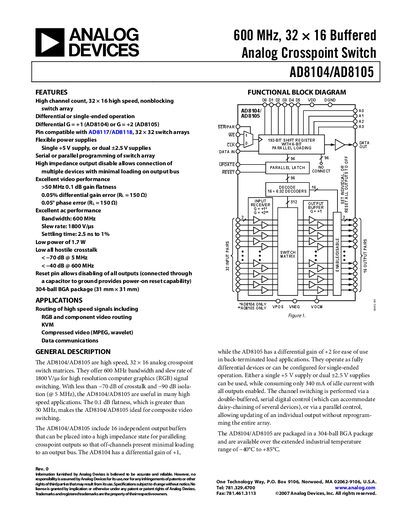

The handbook includes detailed electrical specifications, timing characteristics for serial and parallel programming modes, absolute maximum ratings, thermal resistance data, pin‑out diagrams, and ordering information. Application examples cover high‑speed video routing, KVM, compressed video, and data communications.
| Bandwidth (3 dB) | 600 MHz |
|---|---|
| Slew Rate | 1800 V/µs |
| Supply Voltage Range | 4.5 V to 5.5 V |
| Operating Temperature Range | –40 °C to +85 °C |
The device provides a 3 dB bandwidth of 600 MHz.
It can be powered from a single +5 V supply or dual +2.5 V supplies.
Both devices are offered in a 304‑ball BGA package.
The devices are rated for operation from –40 °C to +85 °C.
