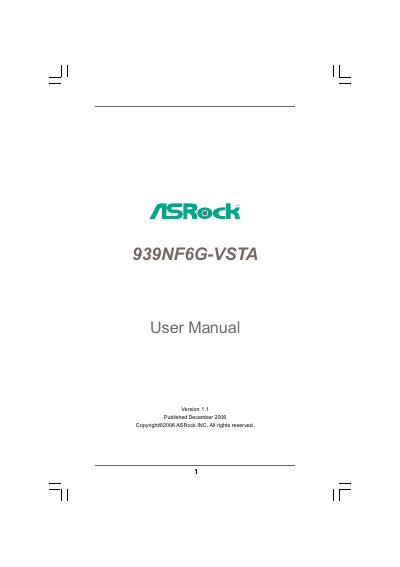

This document is the user manual for ASRock INC. 11111 939NF6G-VSTA, version 1.1, published in December 2006. It contains the features and characteristics of the product.
This manual guides users through the hardware installation of the ASRock 939NF6G-VSTA motherboard, covering package contents, CPU and memory installation, expansion slots, and SATA/IDE connections. It also details the required steps for installing operating systems and using the support CD.
The BIOS Setup Utility section explains how to configure system settings, enable AMD Cool ’n’ Quiet, set passwords, and monitor hardware health. Additional information includes software support, driver installation, and an appendix on AMD’s Cool ’n’ Quiet technology.
| Form Factor | Micro ATX (9.6‑in x 8.6‑in, 24.4 cm x 21.8 cm) |
|---|---|
| CPU Socket | Socket 939 for AMD Athlon 64FX / 64X2 / 64 processors |
| Chipset | NVIDIA GeForce 6100 / nForce 430 or GeForce 6150SE / nForce 430 |
| Memory | 4 DDR DIMM slots, DDR400/333/266, max 4 GB |
| Audio | 7.1‑channel HD Audio (ALC888 codec) |
| LAN | Realtek RTL8201CL, 10/100 Mbps Ethernet |
| SATA Connectors | 4 Serial ATAII 3.0 Gb/s ports, RAID 0/1/0+1/5/JBOD, NCQ, Hot‑Plug |
| BIOS | 4 MB AMI BIOS |
It provides four Serial ATAII 3.0 Gb/s connectors that support RAID, NCQ, and Hot‑Plug functions.
The board uses a Socket 939 designed for AMD Athlon 64FX, 64X2, and 64 processors.
Yes, the manual recommends enabling AMD’s Cool ‘n’ Quiet technology for power‑saving.
In the BIOS Security Screen you can set or change the supervisor and user passwords, and clear the user password if needed.
