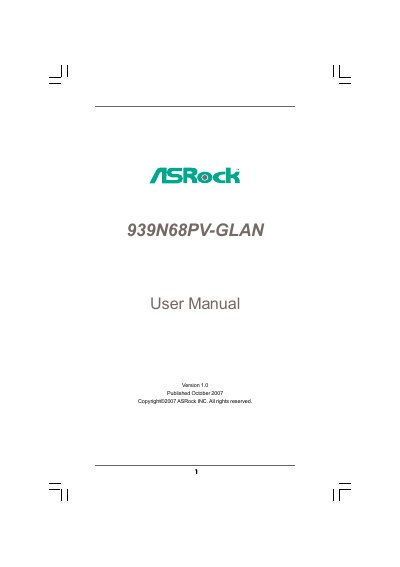

ASRock 939N68PV-GLAN Motherboard User Manual

This is a user manual for 939N68PV-GLAN.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 52
File format: PDF
File size: 741 KB
Published: 02 May, 2012
Updated: 30 September, 2023
Model: 939N68PV-GLAN
MD5 checksum: 2333A7BB19A2199C286A1C8ED22D6CBA
PDF: ASRock 939N68PV-GLAN Motherboard User Manual PDF

About this manual

This manual covers everything needed to install and configure the ASRock 939N68PV-GLAN motherboard, including package contents, hardware layout, and step‑by‑step installation of CPU, memory, and expansion cards. It also details BIOS setup options, power management, and supported operating systems.

Additional sections describe the motherboard's specifications, minimum hardware requirements for Windows Vista Premium, and the support CD utilities for drivers and software. Safety warnings and overclocking cautions are also included.

What's inside

Introduction
Package Contents
Specifications
Minimum Hardware Requirements
Motherboard Layout
Installation Guide
BIOS Setup Utility
Software Support

Specifications

Form Factor	Micro ATX (9.6" x 8.6")
CPU Socket	Socket 939 for AMD Athlon 64FX/64X2/64
Chipset	NVIDIA GeForce 7050 / nForce 630A MCP
Memory Slots	4 x DDR DIMM, DDR400/333/266, max 4 GB
LAN	Gigabit Ethernet 10/100/1000 Mb/s (Realtek RTL8211B)
Expansion Slots	1 × PCI‑Express x16, 1 × PCI‑Express x1, 2 × PCI

Frequently asked questions

What CPU socket does the ASRock 939N68PV-GLAN motherboard use?

It uses a Socket 939 for AMD Athlon 64FX, 64X2, and 64 processors.

How much memory can the 939N68PV-GLAN motherboard support?

The board supports up to 4 GB of DDR memory across four DIMM slots.

What expansion slots are available on this motherboard?

It provides one PCI‑Express x16 slot, one PCI‑Express x1 slot, and two standard PCI slots.

Does the motherboard include Gigabit LAN?

Yes, it has a Gigabit LAN controller supporting 10/100/1000 Mb/s.
