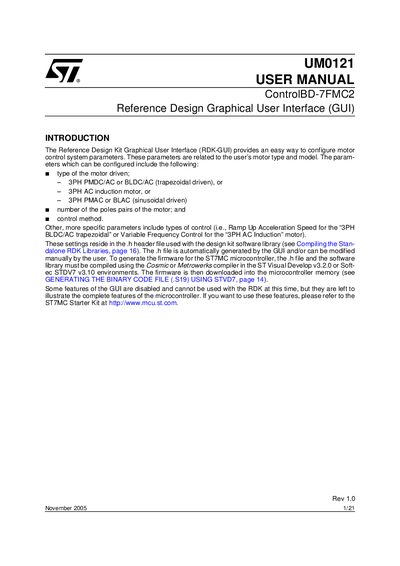

The document is an introduction to the UM0121 user manual, which provides an easy way to configure motor control system parameters, including motor type, pole pairs, and control method, etc. Additionally, the document mentions that some features of the GUI are currently disabled and cannot be used.
The Reference Design Kit Graphical User Interface (RDK‑GUI) provides a simple way to set motor control system parameters for various three‑phase motor types, including PMDC/AC, BLDC/AC, AC induction and PMAC/BLAC. Users select motor type, pole pairs, speed regulation, driving mode and other options, which are saved into a generated .h header file for compilation.
The manual covers installation of the PC software, hardware hookup, configuration of the standalone RDK libraries, advanced motor settings, and steps to generate source files and compile the firmware with STVD7 or other supported compilers. It also lists the limited features available in the reference kit, such as Voltage Mode, Sensorless detection, and Free Wheeling stop condition.
| Driving Mode | Voltage Mode |
|---|---|
| Detection Mode | Sensorless |
| Stop Condition | Free Wheeling |
Press the “Generate Source Files” button, choose a folder in the Save dialog, and the GUI creates the configuration header files.
Only the Free Wheeling stop condition is available.
