74V1G05 is a single open drain type inverter of 74 series, which has the characteristics of high speed, low power consumption, high noise suppression, open drain output, wide power supply range, and power down protection.
The 74V1G05 is a high‑speed, low‑power, open‑drain CMOS single inverter designed for fast switching and high noise immunity. It features a typical propagation delay of 3.7 ns at a 5 V supply and can operate over a wide voltage range.

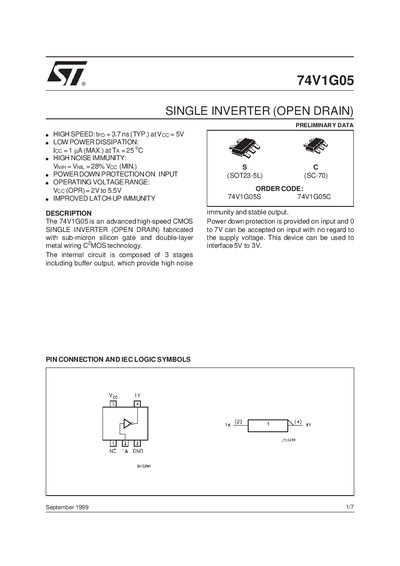

The document lists absolute maximum ratings, recommended operating conditions, DC and AC electrical specifications, capacitance values, and detailed mechanical data for both SOT23‑5L and SC‑70 packages. Pin functions, truth table, and test circuit diagrams are also included.
