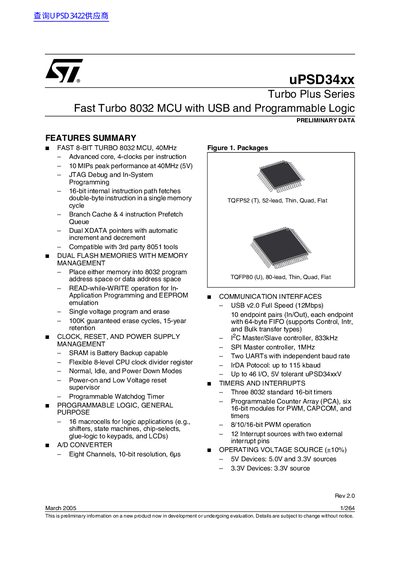

This document provides preliminary information on a new product currently in development or undergoing evaluation. Details are subject to change.
The Turbo Plus uPSD34xx series combines a fast 8‑bit 8032 microcontroller core with a 4‑cycle instruction pipeline, dual flash memory banks and programmable logic, delivering up to 10 MIPS at 40 MHz. The device offers flexible memory management, battery‑backed SRAM and a rich set of peripherals including UARTs, SPI, I²C, USB and a 10‑bit ADC.
The handbook details the hardware architecture, pin assignments, register maps, timing diagrams and programming interfaces. It also covers power‑saving modes, watchdog timer, low‑voltage reset, and provides guidelines for USB operation, FIFO handling, and known hardware limitations.
| CPU Core | Fast 8‑bit Turbo 8032 MCU, 4‑clock per instruction |
|---|---|
| Maximum Clock Frequency | 40 MHz |
| ADC | 10‑bit resolution, 8 channels, 6 µs conversion time |
| USB Interface | USB 2.0 Full Speed 12 Mbps, 10 endpoints, 64‑byte FIFO each |
| I/O Pins | Up to 46 I/O, 5 V tolerant |
| Timers | Three 16‑bit timers and a Programmable Counter Array with six 16‑bit modules |
The uPSD34xx operates up to 40 MHz.
It supports USB 2.0 Full Speed at 12 Mbps.
