TLE20x7, TLE20x7A are precision operational amplifiers manufactured by Texas Instruments with outstanding AC performance and DC precision.

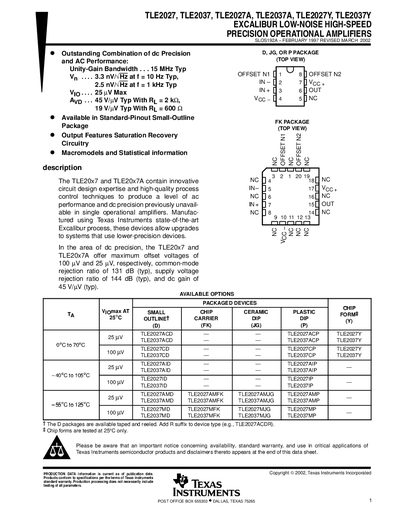

The TLE2027, TLE2037, TLE2027A, TLE2037A, TLE2027Y and TLE2037Y are Excalibur low‑noise, high‑speed precision operational amplifiers manufactured by Texas Instruments. They offer high DC precision, low offset voltage, high common‑mode rejection and wide bandwidth for demanding analog applications.
The devices are offered in several small‑outline and leaded packages (FK, JG, P, etc.) and are qualified for different temperature ranges (C‑suffix 0‑70 °C, I‑suffix –40‑105 °C, M‑suffix –55‑125 °C). The data sheet provides detailed electrical characteristics, absolute maximum ratings, and recommended operating conditions.
| Unity‑gain bandwidth | 15 MHz (typ) |
|---|---|
| Input offset voltage (25 °C) | 20 µV min / 100 µV max |
| Supply voltage range (Voc+) | +4 V to +19 V |
| Common‑mode rejection ratio | 131 dB (typ) |
| Supply‑voltage rejection ratio | 144 dB (typ) |
| Gain | 45 V/µV (typ) |
| Input noise voltage (10 Hz) | 3.3 nV/√Hz (typ) |
| Input noise voltage (1 kHz) | 2.5 nV/√Hz (typ) |
The typical unity‑gain bandwidth is 15 MHz.
They operate from +4 V up to +19 V.
The devices are offered in several small‑outline packages such as FK, JG, P, and in taped or reeled forms.
