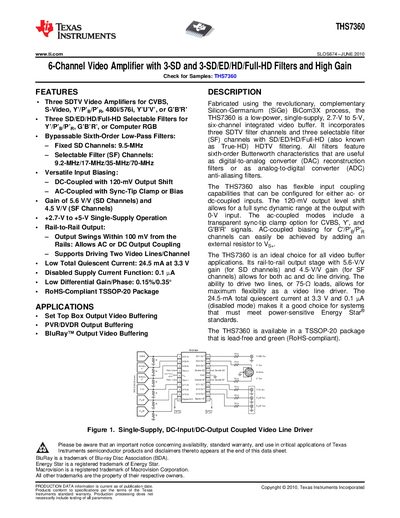

The THS7360 is a 6-channel video amplifier with 3 SD and 3 SD/ED/HD/Full-HD filters and high gain. It is suitable for video signals such as CVBS, S-Video, Y’/P’B/P’R, G’B’R’, or computer RGB.
The THS7360 is a six‑channel video buffer IC that supports standard‑definition (SD), enhanced‑definition (ED), high‑definition (HD) and full‑HD video formats. It offers selectable filter bandwidths, rail‑to‑rail output, and low quiescent current for power‑sensitive applications such as set‑top boxes and Blu‑Ray players.
The device operates from a single 2.6 V to 5.5 V supply, provides gains of 4.3 V/V to 5.6 V/V depending on the filter mode, and is supplied in a RoHS‑compliant TSSOP‑20 package. Detailed electrical characteristics, absolute maximum ratings, and thermal metrics are listed in the following sections.
| Supply voltage (Vs) | 2.6 V – 5.5 V |
|---|---|
| Total quiescent current (no load, 3.3 V) | 24.5 mA |
| Gain (SD channels, typical) | 5.44 V/V |
| Passband bandwidth (SD channels, -1 dB) | 6.7 MHz – 10 MHz |
| Package type | TSSOP‑20 (RoHS‑compliant) |
| Maximum junction temperature (any condition) | +150 °C |
The THS7360 is supplied in a RoHS‑compliant TSSOP‑20 package.
The device draws 24.5 mA of quiescent current at a 3.3 V supply.
It operates from 2.6 V up to 5.5 V.
The absolute maximum junction temperature is +150 °C.
