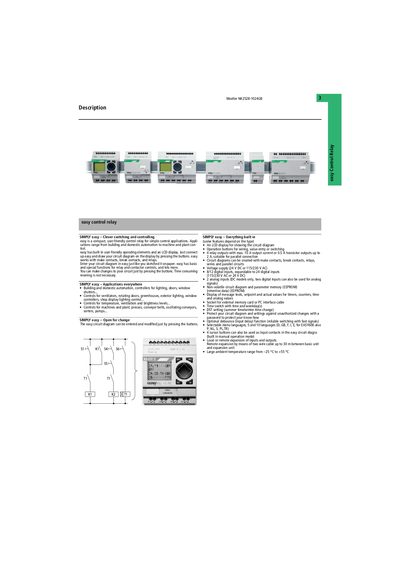

NK2528-1024GB easy is a control relay produced by Moeller. easy control relay is compact and easy to operate. It is suitable for building and domestic automation as well as machine and plant control. easy control relay has built-in user-friendly operating elements and an LCD display. You just need to connect it and draw your circuit diagram on the display by pressing the buttons. easy control relay supports make contacts, break contacts, and relays. You can enter your circuit diagram in easy just like you sketched it on paper. easy control relay has basic and special functions for relay and contactor controls, and lots more. You can make changes to your circuit just by pressing the buttons. Time consuming rewiring is not necessary. easy control relay is suitable for various applications, including building and domestic automation, lighting, doors, windows, ventilation, rotating doors, greenhouses, external lighting, window controllers, shop display lighting control, temperature, ventilation and brightness control, and machine and plant control.
The Easy Control Relay is a compact 45 mm wide control relay designed for building, domestic automation and machine‑plant applications. It offers an LCD display for drawing circuit diagrams directly on the device and intuitive operation buttons for quick changes without rewiring.
The relay provides up to four relay outputs, eight digital inputs, optional analog inputs, and can be expanded with a two‑wire cable up to 30 m. It operates from 24 V DC or 115/230 V AC power supplies and meets industrial temperature and environmental standards.
| Dimensions (mm) | 355 x 90 x 53 |
|---|---|
| Weight | 70 g |
| Power supply (AC) | 115/120/230/240 V AC |
| Digital inputs | 8 (115/230 V AC) |
| Relay outputs | 4 relay outputs, max 10 A |
| LCD display | Shows circuit diagram |
| Expansion distance | Up to 30 m via two‑wire cable |
The relay offers eight digital inputs when powered from 115/230 V AC.
Yes, it can be expanded with an expansion unit using a two‑wire cable up to 30 m away.
