Key facts
- Brand
- Moeller
- Model
- EASY512-DC-TC
- Category
- Automation control Equipment
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-03
Start here

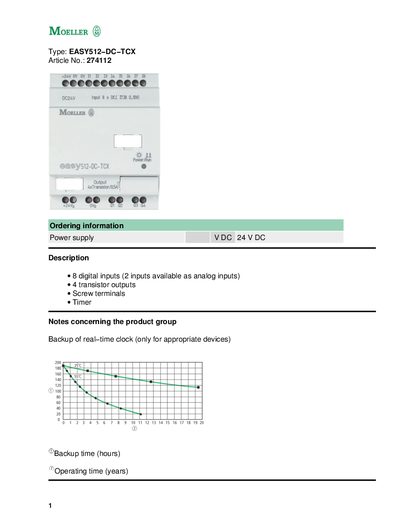

Moeller EASY512-DC-TCX User Manual
The EASY512-DC-TCX is an 8‑channel digital I/O module with two channels configurable as analog inputs and four transistor outputs. It is designed for use in industrial control systems and includes features such as a real‑time clock backup and LCD display options.
The manual lists mechanical dimensions (71.5 × 90 × 58 mm), IP20 protection, a 24 VDC power supply, and a maximum switching frequency of 0.5 Hz. It also covers environmental ratings, mounting options, and wiring guidelines for safe installation and reliable operation.
Moeller EASY512-DC-TC specifications
| Power supply voltage | 24 VDC |
|---|---|
| Digital inputs | 8 (2 usable as analog inputs) |
| Transistor outputs | 4 |
| Dimensions (W × H × D) | 71.5 × 90 × 58 mm |
| Maximum switching frequency | 0.5 Hz |
All Moeller EASY512-DC-TC documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the required power supply voltage for the EASY512-DC-TCX?
The module requires a 24 VDC power supply.
How many digital inputs does the module have and can any be used as analog inputs?
It has eight digital inputs, of which two can be configured as analog inputs.
What is the power supply voltage for the EASY512‑DC‑TC?
The module operates from a 24 V DC power supply.
How many digital inputs does the module provide?
It provides eight digital inputs, two of which can be configured as analog inputs.
