MFD-TAP13-PT-A is a 24VDC input and output module that can be used for input of digital signals and analog signals, of which digital signals can be used as analog signals. The temperature range can be set, and there are 6 digital signals and 2 analog signals for input, and 4 transistor outputs and 1 analog output for output.

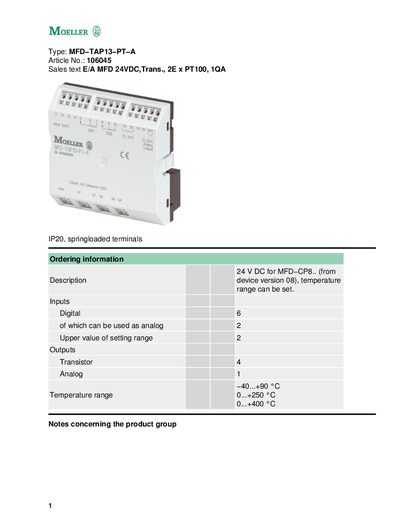

This handbook describes the Moeller MFD‑TAP13‑PT‑A modular field device, including its type, article number, and key functional features such as digital and analog inputs, transistor outputs, and temperature range settings. It also lists accessories and general compliance information.
Technical data cover weight, degree of protection, environmental limits, vibration and shock resistance, EMC classifications, and detailed input/output characteristics. The document is intended for engineers and technicians who need precise product specifications for integration and installation.
| Weight | 0.14 kg |
|---|---|
| Digital input voltage | 24 V DC |
| Analog input range | 0 °C to 4250 °C |
| Vibration amplitude | 0.15 mm |
| Mechanical shock resistance | 15 g / 11 ms |
| EMC class | EN 55011 Class B |
The weight of the module is 0.14 kg.
It provides digital inputs at 24 V DC, which can also be used as analog inputs.
