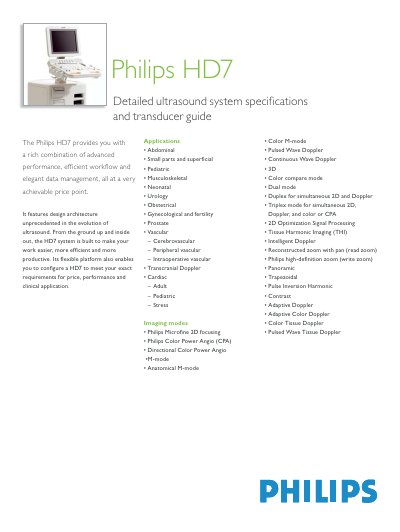

The Philips HD7 ultrasound system combines advanced performance, efficient workflow and elegant data management at an affordable price. It features a design architecture unprecedented in the evolution of ultrasound. From the ground up and inside out, the HD7 system is built to make your work easier, more efficient and more productive. Its flexible platform also enables you to configure a HD7 to meet your exact requirements for price, performance and clinical application.
The Philips HD7 is a versatile ultrasound platform that supports a wide range of clinical applications, including abdominal, obstetrical, cardiac, vascular, pediatric, and musculoskeletal imaging. It offers advanced imaging technologies such as Microfine 2D focusing, Tissue Harmonic Imaging, and Color Power Angio, along with flexible workflow tools and a user‑centered control panel.
The system provides up to 11 interchangeable transducers covering frequencies from 2 MHz to 15 MHz, a 15‑inch high‑resolution color monitor, 256‑bit grayscale depth, and an 80 GB hard drive. Connectivity includes USB, Ethernet, and DICOM support, while the physical footprint is designed for easy mobility with a 165 lb weight and adjustable height and swivel controls.
| Grayscale depth | 256 (8 bits) in 2D, M‑mode and Doppler spectral analysis |
|---|---|
| Monitor size | 15‑inch (333 × 263 mm) high‑resolution color monitor |
| Hard drive capacity | 80 GB |
| Maximum frame rate (High Frame Rate mode) | > 230 fps (dependent on transducer, field of view, depth and angle) |
| Dynamic range | 232 dB full‑time input dynamic range |
| Maximum velocity range (CW Doppler) | 19 m/sec |
| Supported transducers | Up to 11 interchangeable transducers |
| Weight | 165 lb / 75 kg |
| USB ports | 2 |
| Ethernet | 10BaseT or 100BaseT output |
The system can accommodate up to 11 imaging transducers, with electronic switching for up to four at a time.
The HD7 can achieve greater than 230 frames per second in High Frame Rate mode, depending on the transducer and settings.
