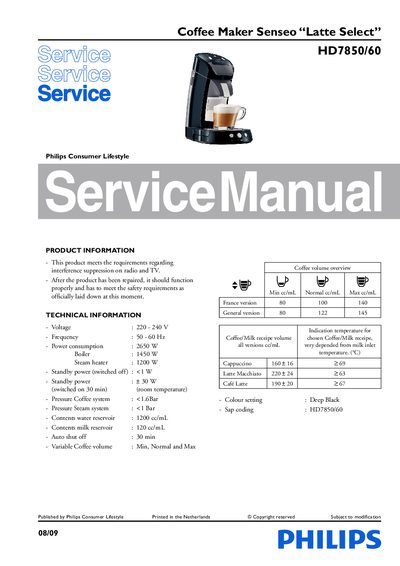

This document introduces the features and characteristics of the Senseo Latte Select HD7850/60 coffee maker, including voltage, frequency, power consumption, standby power, pressure, capacity, coffee volume, etc.
This service manual provides detailed repair and maintenance procedures for the Philips Senseo HD7850/60 coffee maker. It includes step‑by‑step disassembly and re‑assembly instructions, diagnostic test routines, and guidance for volume adjustment and automatic filling.
The document also contains a complete parts list with service codes, exploded views of the appliance, and key technical specifications such as voltage, power consumption, and reservoir capacities.
| Frequency | 50‑60 Hz |
|---|---|
| Power consumption | 2650 W |
| Boiler power | 1450 W |
| Steam heater power | 1200 W |
| Standby power (off) | <1 W |
| Water reservoir capacity | 1200 cc |
| Milk reservoir capacity | 120 cc |
| Auto shut‑off timer | 30 min |
| Coffee pressure | <1.6 Bar |
| Steam pressure | <1 Bar |
| Colour setting | Deep Black |
Fill the boiler, turn the appliance on, select the coffee function, place a cup, press the one‑cup button, measure the output, then press the one‑cup and two‑cup buttons together to enter adjustment mode; each press changes the pump time by about 0.5 s, altering the volume by roughly 3.5 cc per press. Save the new setting by turning the appliance off and on again.
Keep the 1‑cup button pressed while plugging the power cord in; the main‑switch LED will blink rapidly for about one second, indicating the flag is set. Re‑connect the power a second time to verify the LED blinks again.
