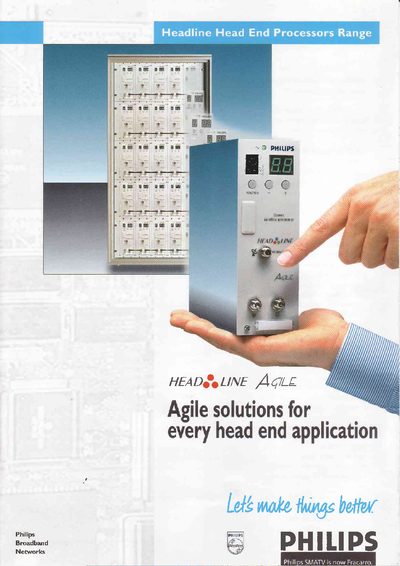

This document introduces the Headline range of head end modules from Philips Broadband Networks. These modules are highly flexible and can be configured to meet various head end system requirements. The Headline modules handle both terrestrial and satellite reception and can be used in collective antenna systems as well as small and medium-size networks. They have compact dimensions and versatile mounting options, making them suitable for any space. The modules are frequency-agile, simplifying installation and maintenance. The Headline range offers a complete and flexible solution for any head end application.
The Headline series offers highly flexible head‑end solutions that cover both terrestrial and satellite reception, from collective antenna systems to small‑medium networks with thousands of outlets. Modules are frequency‑agile, compact, and can handle the full channel range without the need for separate filters, simplifying installation and maintenance.
Each unit is a stand‑alone module with its own microprocessor and power supply, providing reliable operation even if a single module fails. A variety of mounting options are available, including rail‑mounts for single, three‑ or six‑slot configurations and professional 19‑inch rack‑mount kits. Detailed specifications, accessory options, and ordering codes are provided for system designers.
| Display | 3 x 7‑segment display and power‑on LED |
|---|---|
| Storage temperature | -25 °C to +70 °C |
| Power supply | 198 to 264 VAC, 50 Hz |
| Dimensions (HxWxD) | 200 × 68 × 185 mm |
| Weight | 1.3 kg approx. |
| MTBF | >> 50,000 h |
| Modulation type | AM‑VSB |
| Spectral purity | > 60 dB from 47 to 870 MHz |
The basic Headline modules can handle all channels from 47 MHz to 870 MHz, eliminating the need for separate filters or dedicated channel modules.
It includes around 160 preset satellite programmes.
