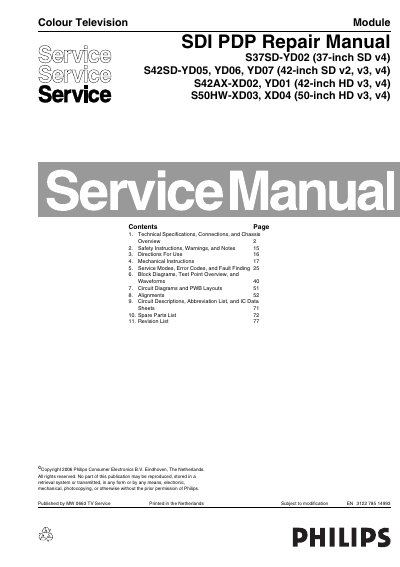

This service manual covers the Philips SDI plasma display panels ranging from 37" to 50". It includes detailed technical specifications, chassis overviews, safety warnings, mechanical instructions, service modes, error codes, fault‑finding procedures, block diagrams, test points, waveforms, circuit diagrams, PCB layouts, alignment procedures, and a comprehensive spare parts list.
The document is organized into sections such as Technical Specifications, Safety Instructions, Directions for Use, Mechanical Instructions, Service Modes, Block Diagrams, Circuit Descriptions, and Spare Parts. Each section provides the information needed by service technicians to diagnose, repair, and maintain the listed PDP models.
| Resolution (S37SD-YD02) | 852 x 480 pixels |
|---|---|
| Display size (S37SD-YD02) | 817.92 mm (H) x 460.80 mm (V) |
| Screen diagonal (S37SD-YD02) | 37" |
| Viewing angle (S37SD-YD02) | Over 160° |
| Weight (S37SD-YD02) | About 15.5 kg |
The 37" SD v4 panel (S37SD-YD02) has a resolution of 852 × 480 pixels.
The module weighs about 15.5 kg.
The spare parts list is provided in Section 10, titled "Spare Parts List".
Section 2 contains Safety Instructions, Warnings, and Notes for safe handling and service.
