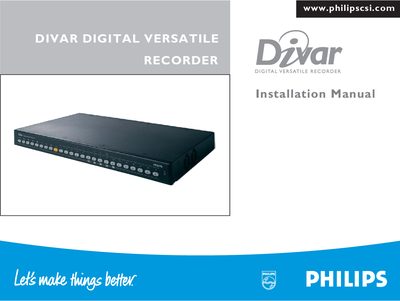

This manual describes installation, operation and maintenance of the Philips Divar Digital Versatile Recorder.
This manual provides step‑by‑step instructions for installing the Philips DIVAR Digital Versatile Recorder used in security video applications. It includes safety precautions, required tools, and wiring diagrams for power, network, and peripheral connections.
The guide also describes the menu system, configuration tool, and technical specifications such as dimensions, environmental limits, and storage options, helping installers configure the recorder for optimal performance.
| Dimensions | 442 x 315 x 45 mm |
|---|---|
| Weight | approx. 5.8 kg |
| Operating Temperature | +0°C to +45°C |
| Recording Resolution | 720 × 288 PAL – 720 × 242 NTSC |
The power cord is the main disconnect; use a polarized or grounding‑type plug as indicated on the unit’s marking label.
The recorder can be expanded with up to seven external SCSI‑2 storage arrays.
