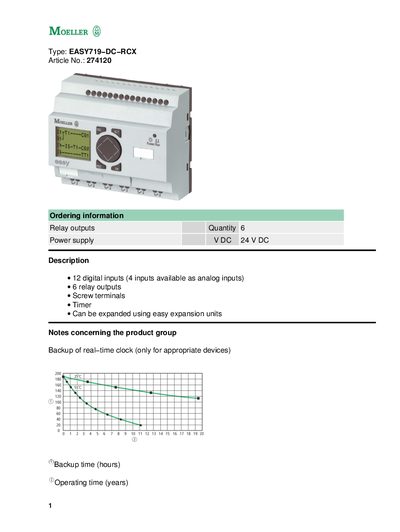

MOELLER Type: EASY719 DC RCX Article No.: 274120 Manual
This manual describes the EASY719-DC-RCX controller, featuring 12 digital inputs (four usable as analog inputs) and six relay outputs. It includes ordering information, expansion options, and basic functional descriptions such as timer functions and backup of the real‑time clock.
Technical data cover dimensions (107.5 × 90 × 58 mm), IP20 protection, operating temperature range –40 /+70 °C, power supply requirements (24 VDC), mounting options, EMC compliance, and detailed specifications for inputs, outputs, isolation, and mechanical ratings.
Moeller EASY719-DC-RC specifications
| Relay outputs | 6 |
|---|---|
| Power supply voltage | 24 VDC |
| Digital inputs | 12 (4 usable as analog inputs) |
| Dimensions (W × H × D) | 107.5 × 90 × 58 mm |
Source: MOELLER Type: EASY719 DC RCX Article No.: 274120 Manual
All Moeller EASY719-DC-RC documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many relay outputs does the EASY719-DC-RCX have?
It has six relay outputs.
From: MOELLER Type: EASY719 DC RCX Article No.: 274120 Manual
What power supply voltage is required for the EASY719-DC-RCX?
The controller requires a 24 VDC power supply.
From: MOELLER Type: EASY719 DC RCX Article No.: 274120 Manual
How many relay outputs does the EASY719-DC-RC have?
The module provides six relay outputs.
What is the operating temperature range of the module?
It can operate from –25 °C to 55 °C.
