Philips 241P3LYES LED Monitor User Manual

The 241P3LYES/00 monitor is a Philips Professional series product with Smart Ergo Base, stereo audio and USB port, LED technology, natural colors and SmartImage function, providing users with excellent display performance.

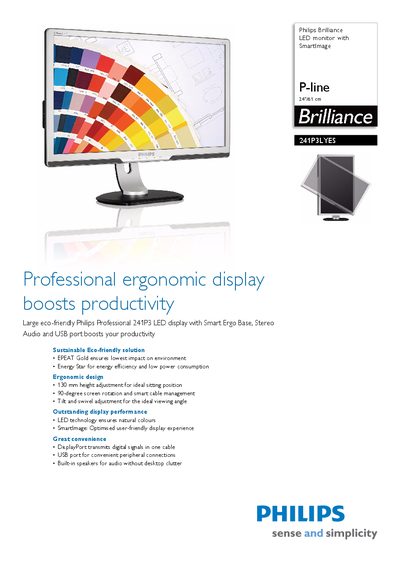

Philips 241P3LYES LED Monitor User Manual - cover page
Brand
Philips
Category
Monitor
Document type
Product Leaflet
Language
English
Pages
3
File format
PDF
File size
1.2 MB
Published
02 May, 2012
Updated
30 September, 2023
Model
241P3
MD5 checksum
485BA2A91B10C4C3B211C45569101AF9

About this manual

The Philips 241P3LYES is a 24‑inch LED monitor from the Brilliance series featuring SmartImage technology, built‑in stereo speakers, and a Smart Ergo Base that offers height, tilt, swivel and 90° pivot adjustments for comfortable viewing. It includes eco‑friendly design elements such as Energy Star 5.0 certification and EPEAT Gold compliance.

The manual lists the display specifications (24" TFT‑LCD panel, 1920×1080 resolution, 5 ms response time, 250 cd/m² brightness, 1000:1 contrast) and connectivity options (VGA, DVI‑D with HDCP, DisplayPort, USB 2.0, audio in/out). Power consumption figures, physical dimensions, and environmental certifications are also provided.

What's inside

  • Highlights
  • SmartImage
  • Ergonomic Design
  • Display Specifications
  • Connectivity
  • Power Consumption
  • Physical Dimensions
  • Environmental Certifications
  • Compliance and Standards

Specifications

Panel Size24 inch / 61 cm
Aspect Ratio16:9
Resolution1920 x 1080 @ 60 Hz
Response Time5 ms
Brightness250 cd/m²
Contrast Ratio1000:1 (typ.)
SmartContrast20,000,000:1
Pixel Pitch0.276 mm × 0.276 mm
Viewing Angle170° (H) / 160° (V)
Backlight TypeW‑LED system
Height Adjustment130 mm
Power – ECO Mode14 W (typ.)
Power – On Mode18.9 W
Power – Standby Mode0.5 W
Dimensions (with stand)570 × 507 × 220 mm
Weight (with stand)6.7 kg

Frequently asked questions

What video input ports are available on the Philips 241P3LYES monitor?

The monitor provides VGA (analogue), DVI‑D (digital with HDCP) and DisplayPort inputs.

Does the monitor have a USB port and what can it be used for?

Yes, it includes a USB 2.0 port for connecting peripherals such as memory sticks, cameras, or printers.

How can the monitor be adjusted for ergonomic comfort?

It features a height‑adjustable stand (130 mm), tilt (-5° to 20°), swivel (-65° to +65°), and a 90° pivot rotation.

What energy‑efficiency certifications does the Philips 241P3LYES have?

The monitor is certified Energy Star 5.0 and EPEAT Gold, meeting strict power‑efficiency and environmental standards.
