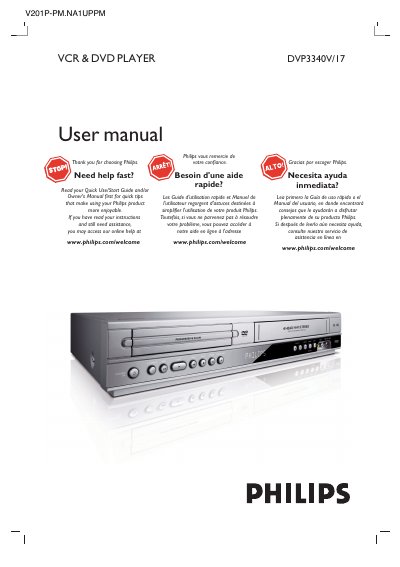

This document is the user manual for the Philips VCR and DVD player DVP3340V/17. The manual provides a quick start guide and owner's manual to help users make the most of their Philips product. If users still need assistance, they can access Philips' online help.
This manual explains how to install, connect, and operate the Philips DVP3340V/17 VCR & DVD player. It covers safety warnings, power requirements, front‑panel controls, remote‑control usage, and basic TV connections for both VCR and DVD functions.
Detailed sections describe initial settings for VCR and DVD modes, playback and recording features, disc handling, regional code information, and maintenance procedures. A troubleshooting guide lists common symptoms, causes, and corrective actions, followed by full technical specifications of the unit.
| Power requirements | 120 V, 60 Hz |
|---|---|
| Power consumption | 16 W |
| Dimensions (W × H × D) | 16.9" × 3.1" × 10.2" (430 × 79 × 260 mm) |
| Net weight | 8.8 lb (4.0 kg) |
| Operating temperature | 5 °C to 40 °C (41 °F to 104 °F) |
| Signal system | NTSC |
| Video output (composite) | 1 V p‑p, 75 Ω, sync negative |
| Audio output (analog) | 2.0 Vrms (1 kHz, 0 dB), 600 Ω |
| VCR tape speed (SP) | 33.35 mm/sec |
| DVD laser wavelength | 650 nm |
Press the POWER button (labelled 11) to switch the unit on or off.
The unit consumes 16 W of power.
It provides a composite video output of 1 V p‑p, 75 Ω with negative sync.
