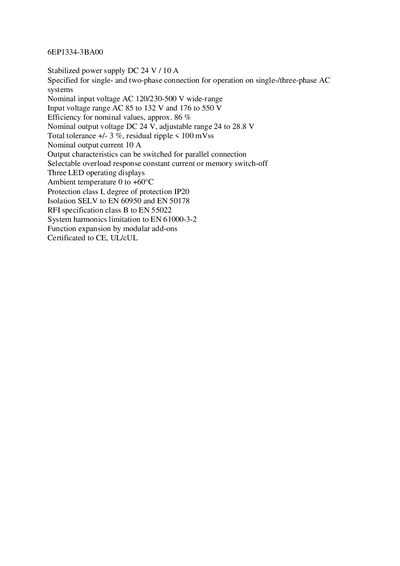

This document describes the features and characteristics of the 6EP1334-3BA00 model stabilized power supply. The power supply is designed for single-phase and two-phase connection and can operate on single-phase and three-phase AC systems. It has a wide input voltage range of AC 85 to 132 V and 176 to 550 V. The nominal output voltage is DC 24 V, with an adjustable range of 24 to 28.8 V, and the nominal output current is 10 A. The power supply can be switched for parallel connection and has selectable overload response modes. It also features three LED operating displays, a wide ambient temperature range of 0 to +60°C, and a protection class of IP20.
The 6EP1334-3BA00 is a stabilized DC power supply providing 24 V output at up to 10 A. It supports single‑ and two‑phase connections and can be used on single‑ or three‑phase AC systems. The unit features three LED indicators and optional modular add‑ons for function expansion.
Key specifications include a wide input voltage range (85‑132 V and 176‑550 V), approx. 86 % efficiency, adjustable output voltage (24‑28.8 V) with ±3 % tolerance, and protection class I (IP20). The device meets CE, UL/cUL, EN 60950, EN 50178, EN 55022, and EN 61000‑3‑2 standards.
| Nominal input voltage | AC 120/230-500 V wide‑range |
|---|---|
| Input voltage range | AC 85‑132 V and 176‑550 V |
| Efficiency | ≈ 86 % |
| Nominal output voltage | DC 24 V (adjustable 24‑28.8 V) |
| Total tolerance | ± 3 % |
| Residual ripple | < 100 mVss |
| Nominal output current | 10 A |
| Ambient temperature range | 0 °C to +60 °C |
| Protection class | I, IP20 |
| Isolation standard | SELV to EN 60950 and EN 50178 |
| RFI specification class | B to EN 55022 |
| System harmonics limitation | EN 61000‑3‑2 |
| Certifications | CE, UL/cUL |
The nominal output voltage is 24 V DC, adjustable between 24 V and 28.8 V.
It accepts AC input from 85 V to 132 V and from 176 V to 550 V.
The unit is certified to CE and UL/cUL standards and complies with EN 60950, EN 50178, EN 55022, and EN 61000‑3‑2.
The efficiency is approximately 86 % at nominal operating conditions.
