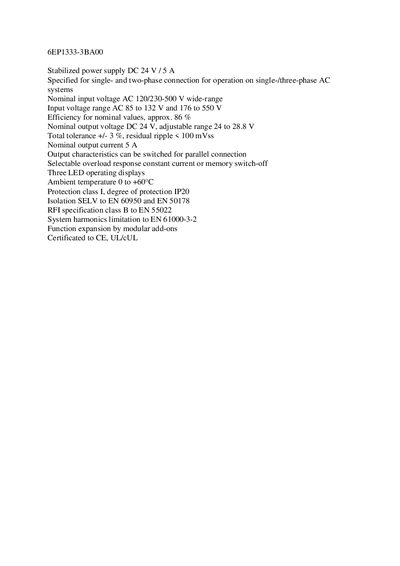

6EP1333-3BA00 Stabilized power supply, rated input voltage AC 120/230-500 V, output voltage DC 24 V, rated output current 5 A.
The 6EP1333-3BA00 provides a regulated 24 V DC output (adjustable to 28.8 V) at up to 5 A, suitable for single‑ and two‑phase connections on single‑ or three‑phase AC systems. It features selectable overload response modes and three LED status indicators.
Key specifications include a wide input voltage range (85‑132 V and 176‑550 V), approx. 86 % efficiency, low ripple (<100 mVss), and robust protection (class I, IP20). The unit complies with IEC safety and EMC standards and is certified CE and UL/cUL.
| Nominal input voltage | AC 120/230-500 V wide-range |
|---|---|
| Input voltage range | AC 85‑132 V and 176‑550 V |
| Efficiency | ≈ 86 % |
| Nominal output voltage | DC 24 V (adjustable 24‑28.8 V) |
| Total tolerance | ± 3 % |
| Residual ripple | < 100 mVss |
| Nominal output current | 5 A |
| Ambient temperature range | 0 °C to +60 °C |
| Protection class | I, IP20 |
| Isolation | SELV to EN 60950 and EN 50178 |
| RFI class | B to EN 55022 |
| System harmonics limitation | EN 61000‑3‑2 |
| Certifications | CE, UL/cUL |
It accepts AC input from 85 V to 132 V and from 176 V to 550 V.
The nominal output is 24 V DC, adjustable up to 28.8 V, with a maximum current of 5 A.
The power supply operates at approximately 86 % efficiency at nominal values.
It is certified to CE and UL/cUL standards and meets IEC safety and EMC requirements.
