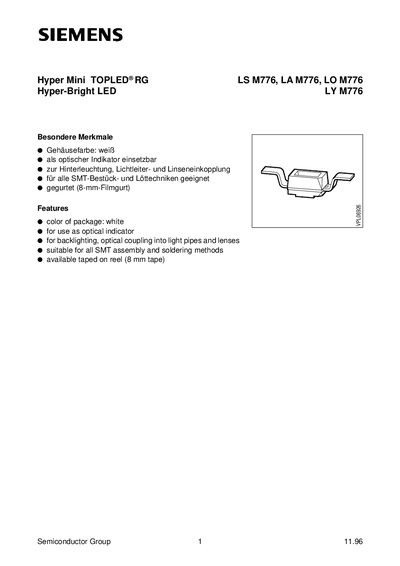

This document describes the features and characteristics of semiconductor products, including their use as optical indicators, suitability for backlighting, optical coupling into light pipes and lenses, compatibility with all SMT assembly and soldering methods, white package color, and availability in 8 mm tape.
The Siemens M776 series includes the LS, LA, LO and LY LED families, offered in a white package suitable for backlighting, optical coupling and as an indicator. All variants are supplied on 8‑mm tape reels and are compatible with standard SMT assembly processes.
Key characteristics such as forward voltage, reverse current, operating temperature range, luminous intensity and spectral data are listed for each part number, along with package dimensions and permissible pulse handling capabilities. This manual is written in German.
