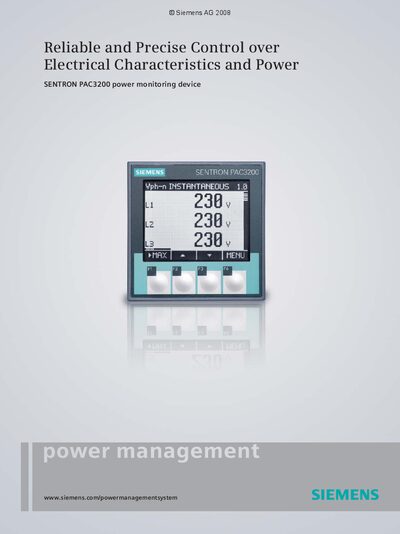

This document describes the features and advantages of the Siemens SENTRON PAC3200 power monitoring device. The device accurately and reliably detects power values and provides detailed measurements of electrical parameters. It can be used in various power consumption scenarios and can be easily connected to supervisory automation and power management systems for further data processing.
The SENTRON PAC3200 is a compact panel‑mount power monitoring device (96 × 96 mm) that measures current, voltage, power, frequency, power factor and THD. It provides instantaneous, minimum, maximum and averaged values, and stores them for further processing via Ethernet, PROFIBUS DP, SEAbus TCP or Modbus TCP.
The device supports direct voltage measurement up to 830 V, optional voltage transformers, and current transformers of 1 A or 5 A. It includes a multilingual graphical LCD, one multifunctional digital input, one digital output, and IP65 protection on the front. The free SENTRON powerconfig software enables easy configuration and integration into Siemens power‑management systems such as SIMATIC PCS 7 powerrate and WinCC powerrate.
| Measurement accuracy (voltage) | 0.3 % |
|---|---|
| Measurement accuracy (current) | 0.2 % |
| Panel size | 96 × 96 mm |
| Front protection rating | IP65 |
| Digital inputs | 1 (multifunctional) |
| Digital outputs | 1 (multifunctional) |
| Operating temperature range | -5 °C … +55 °C |
| Power supply (AC) | 95 V … 240 V |
| Power supply (DC) | 140 V … 340 V |
| Maximum direct voltage measurement | 830 V |
| Current transformer options | x/1 A or x/5 A |
| Communication protocols | SEAbus TCP, Modbus TCP, PROFIBUS DP |
It includes an Ethernet port with SEAbus TCP and Modbus TCP protocols and an optional PROFIBUS DP expansion module.
The PAC3200 has one multifunctional digital input and one multifunctional digital output.
