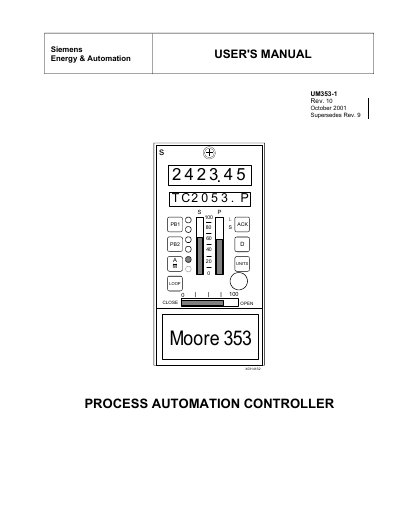

This manual introduces the product features, function blocks, configuration, delivery and handling of the Moore 353 s process automation controller UM353-1.
This manual covers the UM353-1 controller from Siemens Energy & Automation, describing its hardware, function blocks, and communication options. It includes detailed installation guidelines, wiring diagrams, and safety information for proper setup.
The document also provides configuration procedures, data mapping, calibration steps, and troubleshooting guidance, helping users operate and maintain the controller in industrial environments.
| Input voltage requirements | 120/240 VAC, 20 W, 47‑63 Hz, 30 VA |
|---|---|
| Maximum ambient temperature | 50 °C |
| Analog input range | 0 to 5 VDC @ 30 µA |
| Digital input voltage range | 0 to 30 VDC @ 5 mA |
| Relay output current rating | 5 A @ 120 V, 2.5 A @ 240 V |
The controller requires 120 V to 240 V AC at 20 W, 47‑63 Hz, with a maximum power of 30 VA.
The controller can operate up to a maximum ambient temperature of 50 °C.
Analog inputs accept 0 to 5 VDC with a current of 30 µA.
