Mini SIDELED® LS C870, LO C870, LY C870 LG C870, LP C870 These products have different emission colors and brightness, and are used for optical indication, backlighting, optical coupling into light pipes and lenses.
The Siemens LS C870 series (including LS, LO, LY, LG and LP variants) are Mini SIDELED® devices designed for use as optical indicators, backlighting, and light‑pipe coupling. They are supplied on 12 mm tape and meet DIN 40839 load‑dump resistance standards.

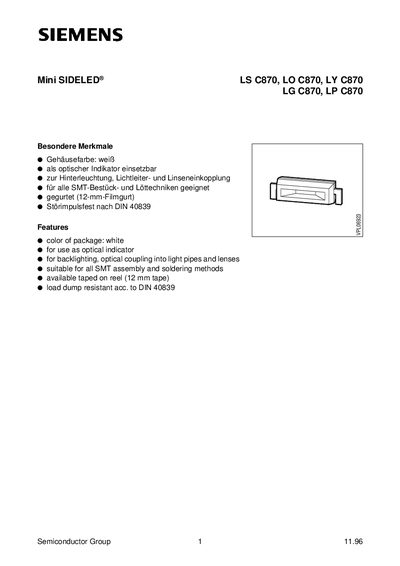

The datasheet provides detailed electrical ratings (operating temperature, forward current, reverse voltage, power dissipation, thermal resistance) and optical characteristics (peak wavelength, dominant wavelength, spectral bandwidth, viewing angle) together with package dimensions and ordering codes for each colour variant. This manual is written in German.
| Operating temperature range | –55 °C to +100 °C |
|---|---|
| Storage temperature range | –55 °C to +100 °C |
| Junction temperature (max) | +100 °C |
| Forward current (typ) | 30 mA |
| Reverse current (typ) | 10 µA |
| Tape width (reel) | 12 mm |
The devices operate from –55 °C up to +100 °C.
The typical forward current is 30 mA.
