Philips SpeechMike Air LFH-3000 Review Manual

The Philips SpeechMike Air is an extremely high‐quality hand‐held microphone that will work with all versions of Dragon. It is highly accurate, very simple to use and average in noise canceling ability. Its retail price is a substantial $499 but for those needing the unique qualities of this microphone, it may be worth every penny.

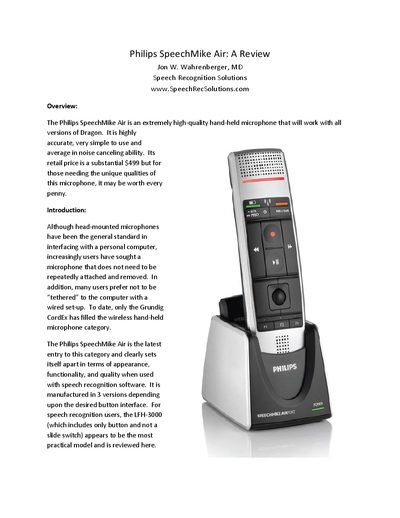

Philips SpeechMike Air LFH-3000 Review Manual - cover page
Brand
Philips
Category
Other device
Document type
Product Leaflet
Language
English
Pages
8
File format
PDF
File size
413 KB
Published
02 May, 2012
Updated
29 September, 2023
MD5 checksum
8168B771EC46E2538811D38EF98C088B

About this manual

The Philips SpeechMike Air LFH-3000 is a wireless hand‑held microphone designed for use with Dragon speech‑recognition software. It offers a solid build, a trackball, programmable buttons, and a battery‑operated design that can run up to 7 hours.

The document provides an overview of the device’s form factor, functionality, programming options via the Philips Device Control Center, and technical specifications such as wireless range, microphone type, and power requirements.

What's inside

  • Overview
  • Form and Functionality
  • Use with Speech Recognition Software
  • Programming Keys
  • Portable Usage
  • Using with Other Microphones
  • Comparison to Other Products
  • Technical Data
  • Optional Accessories

Specifications

Wireless operating rangeup to 10 meters (33 feet)
Microphone typeelectret condenser microphone
Frequency response100 – 7500 Hz
Microphone sensitivity-37 dB @ 1 kHz
Signal‑to‑noise ratio> 70 dBA
Battery typetwo Philips AAA Ni‑MH rechargeable batteries (LFH9154) or two AAA batteries
Power supply6 VDC / 850 mA
Recording time (rechargeable)up to 7 hours
Charging time (full)2.5 hours
Dimensions (W×D×H)45 × 165 × 30 mm
Weight125 g (4.4 oz)
Operating temperature5 °C – 45 °C (41 °F – 113 °F)

Frequently asked questions

What is the wireless range of the SpeechMike Air?

The wireless connection works up to 10 meters (33 feet).

How long can the microphone record on rechargeable batteries?

It can record for up to 7 hours with the Philips rechargeable batteries.

What type of microphone does the SpeechMike Air use?

It uses an electret condenser microphone.

Can an external microphone be connected?

Yes, a 3.5 mm jack allows an external microphone, which disables the built‑in mic.

Download PDF (413 KB)
