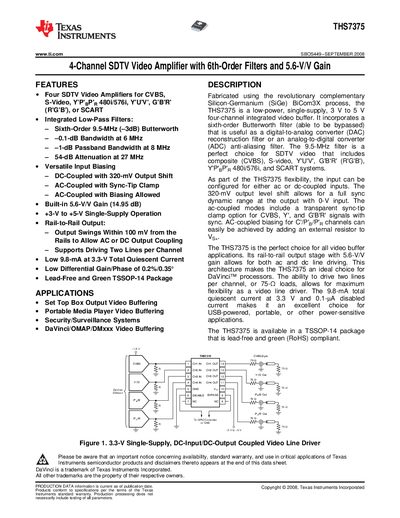

The THS7375 is a low-power, single-supply, 3 V to 5 V four-channel integrated video buffer. It incorporates a sixth-order Butterworth filter that is useful as a digital-to-analog converter (DAC) reconstruction filter or an analog-to-digital converter (ADC) anti-aliasing filter. The THS7375 has versatile input biasing and can be configured for either ac or dc-coupled inputs.
The THS7375 is a low‑power, single‑supply video buffer that supports four SDTV video channels (CVBS, S‑Video, Y'UV, RGB, SCART). It features integrated sixth‑order 9.5‑MHz Butterworth low‑pass filters, a built‑in 5.6 V/V (14.95 dB) gain, and rail‑to‑rail output capable of driving two lines per channel.
The device operates from a 3 V to 5 V supply, draws only 9.8 mA quiescent current at 3.3 V, and is supplied in a lead‑free, RoHS‑compliant TSSOP‑14 package. Absolute‑maximum ratings, recommended operating conditions, and detailed electrical characteristics are provided for design reference.
| Supply voltage (Vs) range | 3 V to 5 V |
|---|---|
| Gain | 5.6 V/V (14.95 dB) |
| Quiescent current (3.3 V) | 9.8 mA |
| Filter bandwidth (6th‑order) | 9.5 MHz (-3 dB) |
| Package | TSSOP‑14, lead‑free, green |
| Output swing | Within 100 mV of rails |
| Maximum output current | +90 mA |
The THS7375 provides four independent video channels.
The recommended supply voltage is 3 V to 5 V.
The device is shipped in a TSSOP‑14 package.
